Automatic Transmission
>>
Torque Converter/Drive Plate
Torque Converter/Drive Plate

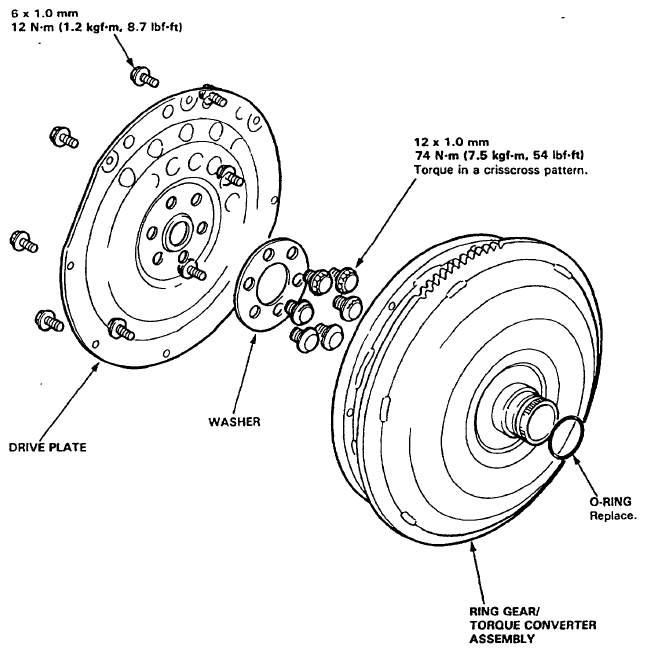

Fig 1: Torque Converter/Drive Plate Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
