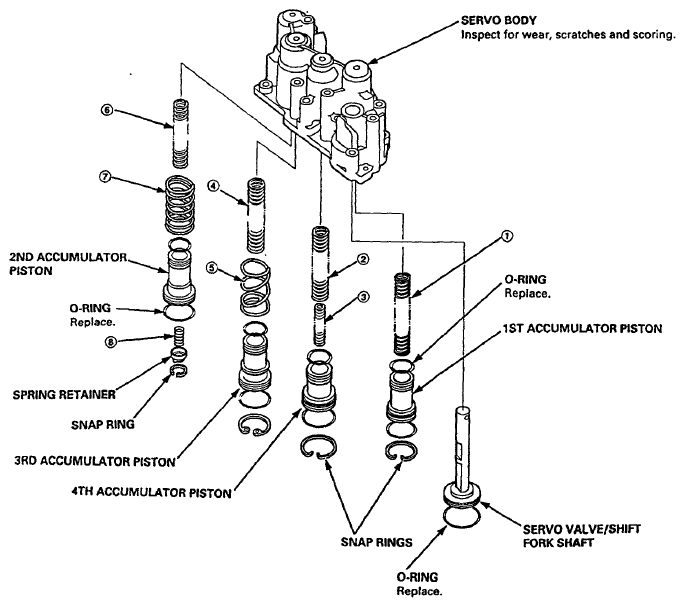

Servo Body: Disassembly/Inspection/Reassembly
NOTE:
- Clean all parts thoroughly in solvent or carburetor cleaner, and dry with compressed air. Blow out all passages.
- Replace the valve body as an assembly if any parts are worn or damaged.
- Coat all parts with ATF during assembly.
- Replace the O-rings.
SPRING SPECIFICATIONS
SPRING SPECIFICATIONS
| Unit: mm (in) | |||||
|---|---|---|---|---|---|
| No. | Springs | Standard (New) | |||
| Wire Dia. | O.D. | Free Length | No. of Coils | ||
| (1) | 1st accumulator spring | 2.1 (0.083) | 16.0 (0.636) | 89.1 (3.508) | 16.2 |
| (2) | 4th accumulator spring A | 2.6 (0.102) | 17.0 (.0676) | 87.0 (3.425) | 14.2 |
| (3) | 4th accumulator spring B | 2.3 (0.091) | 10.2 (0.402) | 51.6 (2.031) | 13.8 |
| (4) | 3rd accumulator spring A | 2.8 (0.110) | 17.5 (0.695) | 89.3 (3.516) | 15.6 |
| (5) | 3rd accumulator spring B | 2.2 (0.087) | 31.0 (1.220) | 35.1 (1.382) | 2.4 |
| (6) | 2nd accumulator spring C | 2.2 (0.087) | 14.5 (0.576) | 68.0 (2.677) | 13.9 |
| (7) | 2nd accumulator spring A | 2.4 (0.094) | 29.0 (1.1521) | 39.0 (1.535) | 2.9 |
| (8) | 2nd accumulator spring B | 16.3 (0.063) | 9.0 (0.358) | 20.7 (0.815) | 6.1 |
