Regulator Valve Body: Disassembly/Inspection/Reassembly

NOTE:

Clean all parts thoroughly in solvent or carburetor cleaner, and dry with compressed air. Blow out all passages.
Replace the valve body as an assembly if any parts are worn or damaged.
Check all valves for free movement. If any fail to slide freely, see VALVE BODY REPAIR on .

Hold the regulator spring cap in place while removing the stop bolt. The regulator spring cap is spring loaded. Once the stop bolt is removed, release the spring cap slowly so it does not pop out.
Reassembly is the reverse order of the disassembly procedure.
NOTE:
- Coat all parts with ATF during assembly.
- Align the hole in the regulator spring cap with the hole in the valve body, then press the spring cap into the valve body, and tighten the stop bolt.

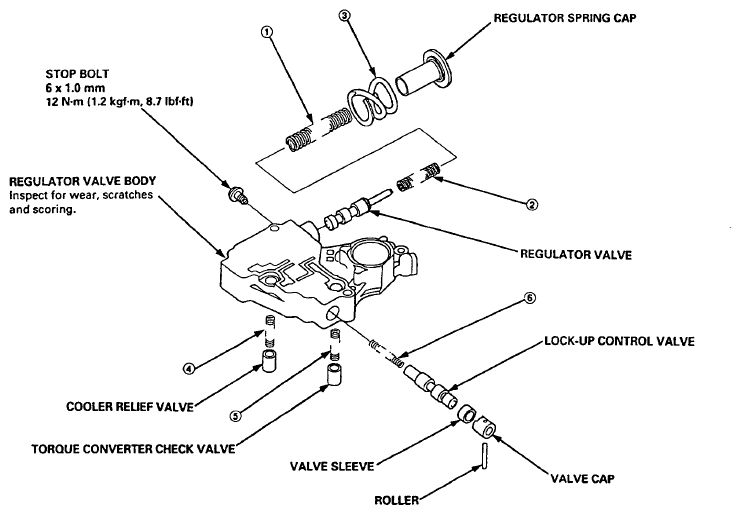

  Fig 1: Exploded View Of Regulator Valve Body
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

SPRING SPECIFICATIONS

Unit: mm (in)
No.	Springs	Standard (New)
No.	Springs	Wire Dia.	O.D.	Free Length	No. of Coils
(1)	Regulator valve spring A	1.8 (0.071)	14.7 (0.584)	87.8 (3.457)	16.5
(2)	Regulator valve spring B	1.8 (0.071)	9.6 (0.381)	44.0 (1.732)	11.0
(3)	Stator reaction spring	4.5 (0.177)	35.4(1.407)	30.3 (1.193)	1.9
(4)	Cooler relief valve spring	1.0(0.039)	8.4 (0.334)	33.8(1.331)	8.2
(5)	Torque converter check valve spring	1.0(0.039)	8.4 (0.334)	33.8 (1.331)	8.2
(6)	Lock-up control valve spring	0.7 (0.028)	6.6 (0.262)	38.0 (1.496)	14.1
