PCM Circuit Diagram (A/T Control System)

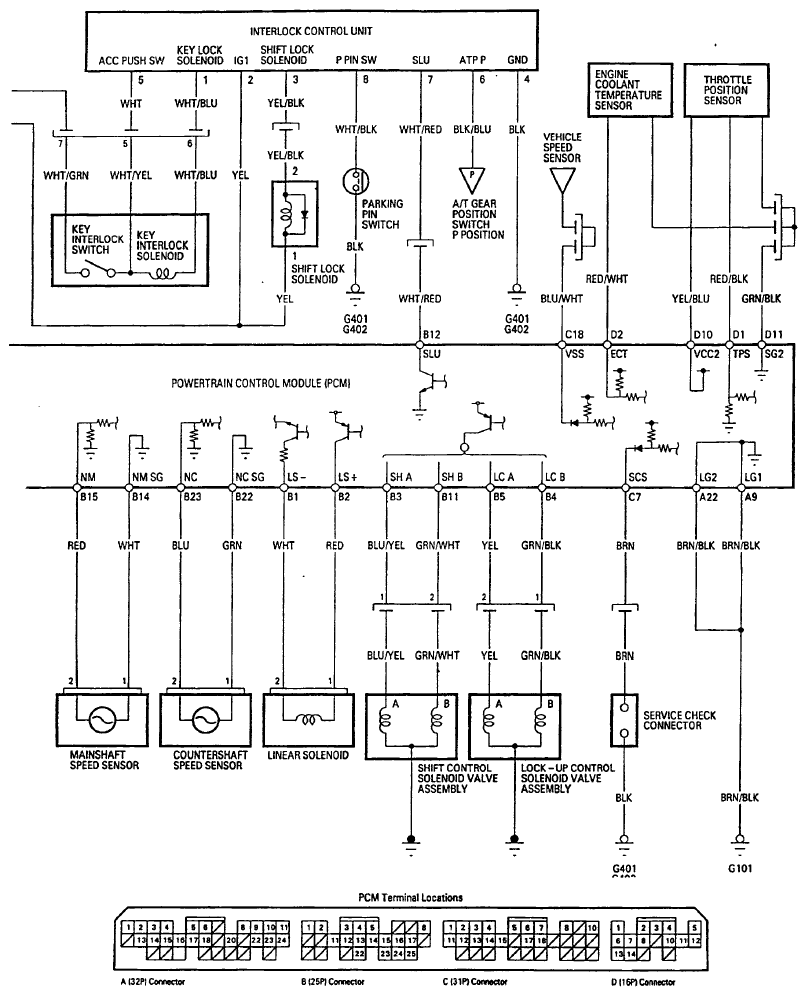

Fig 1: PCM Circuit Diagram - A/T Control System (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

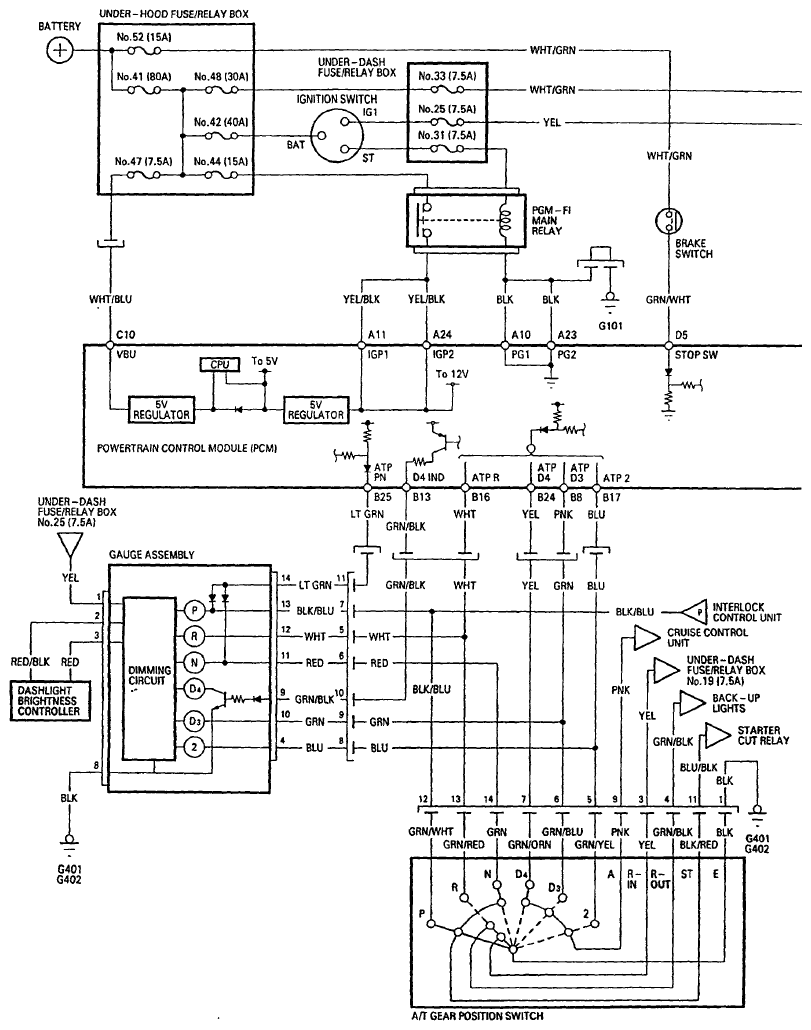

Fig 2: PCM Circuit Diagram - A/T Control System (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
