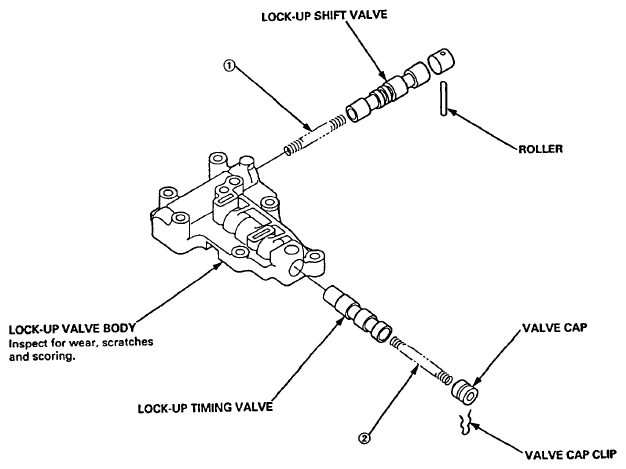

Lock-up Valve Body: Disassembly/Inspection/Reassembly
NOTE:
- Clean all parts thoroughly in solvent or carburetor cleaner, and dry with compressed air. Blow out all passages.
- Replace the valve body as an assembly if any parts are worn or damaged.
- Check all valves for free movement. If any fail to slide freely, see VALVE BODY REPAIR on .
- Coat all parts with ATF during assembly.
SPRING SPECIFICATIONS
SPRING SPECIFICATIONS
| Unit: mm (in) | |||||
|---|---|---|---|---|---|
| No. | Springs | Standard (New) | |||
| Wire Dia. | O.D. | Free Length | No. of Coils | ||
| (1) | Lock-up shift valve spring | 0.9 (0.035) | 7.6 (0.302) | 73.7 (2.902) | 32.0 |
| (2) | Lock-up timing valve spring | 0.9 (0.035) | 8.1 (0.319) | 80.7 (3.177) | 45.8 |
