Linear Solenoid Assembly: Replacement

  1. Remove the mounting bolts and the linear solenoid assembly.

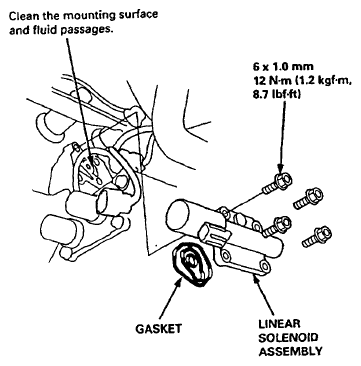

    Fig 1: Identifying Linear Solenoid Assembly And Gasket
    G06288257Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Clean the mounting surface and fluid passage of the linear solenoid assembly and transmission housing.
  3. Install a new linear solenoid assembly with a new gasket.
    NOTE: Do not pinch the gasket when installing the linear solenoid; make sure that the gasket is installed properly in the mounting groove of the linear solenoid.
  4. Check the linear solenoid connector for rust, dirt or oil, and connect it securely.
