Troubleshooting Flowchart - Interlock System - Key Interlock System
Troubleshooting Flowchart - Interlock System - Key Interlock System

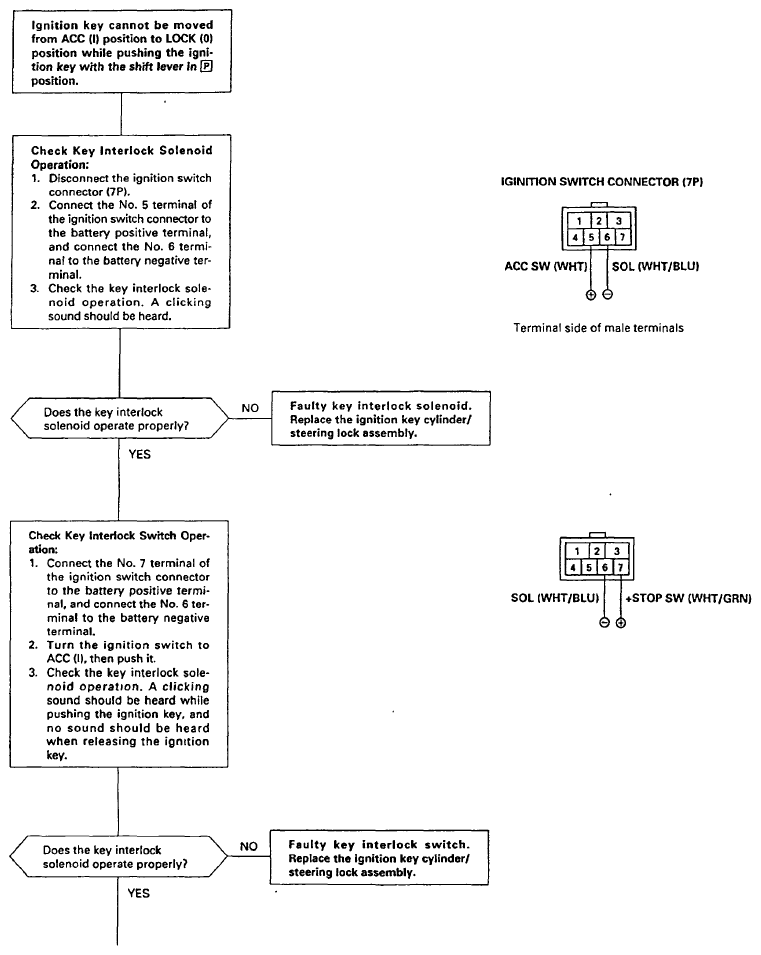

Fig 1: Troubleshooting Flowchart - Interlock System - Key Interlock System (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

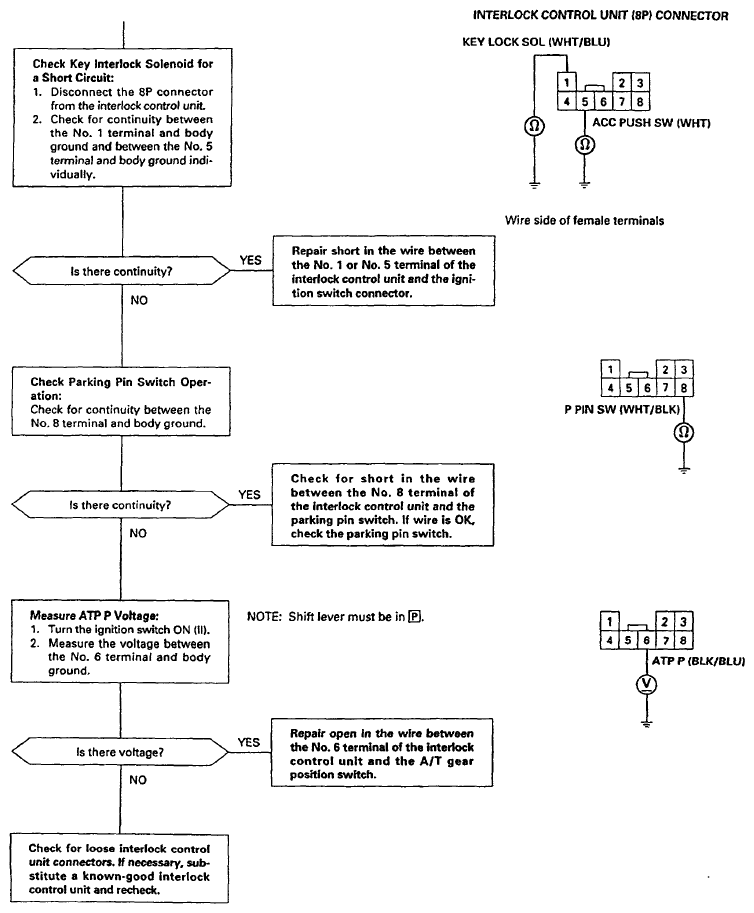

Fig 2: Troubleshooting Flowchart - Interlock System - Key Interlock System (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
