Troubleshooting Flowchart - Countershaft Speed Sensor

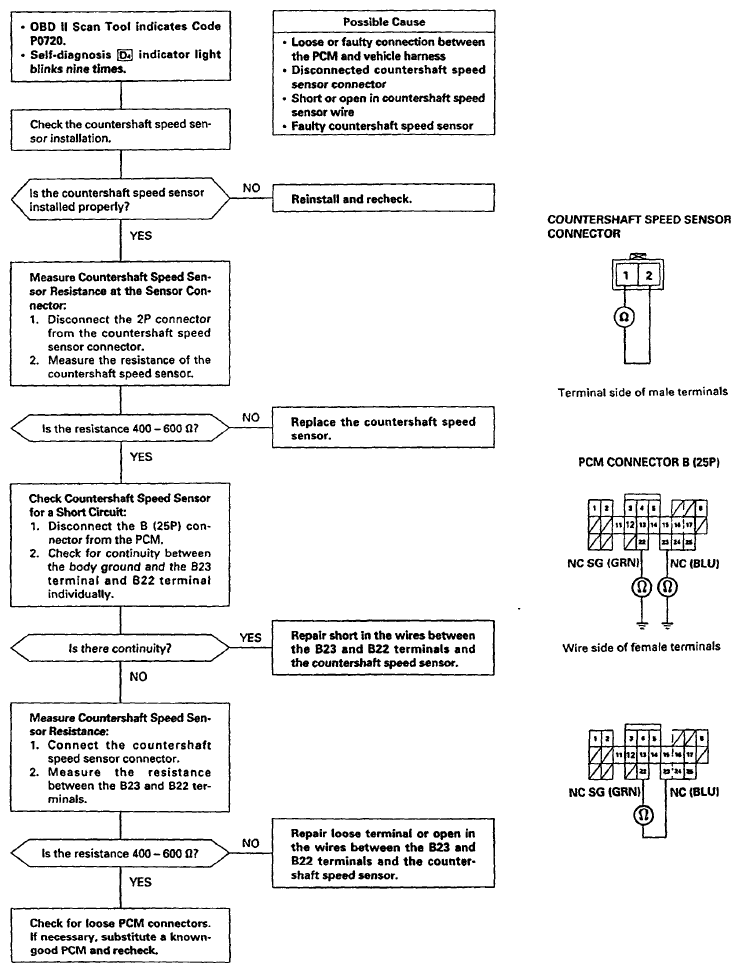

Fig 1: Troubleshooting Flowchart - Countershaft Speed Sensor

G06288236

Courtesy of AMERICAN HONDA MOTOR CO., INC.
