Automatic Transmission: Countershaft: Inspection

Clearance Measurement

1. Remove the countershaft bearing from the transmission housing (see TRANSMISSION HOUSING BEARINGS  ).
2. Install the parts below on the countershaft using the special tool and a press as described on this page.
   NOTE: Do not assemble the O-rings during inspection.

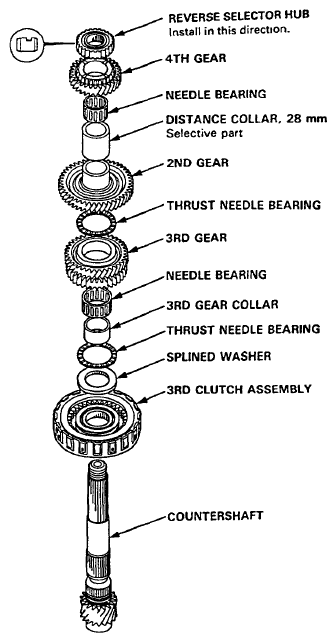

   Fig 1: Identifying Reverse Selector Hub Installation Position

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the parts below on the countershaft sub-assembly, then torque the locknut to 29 N.m (3.0 kgf.m, 22 lbf.ft).
   NOTE: Countershaft locknut has left-hand threads.

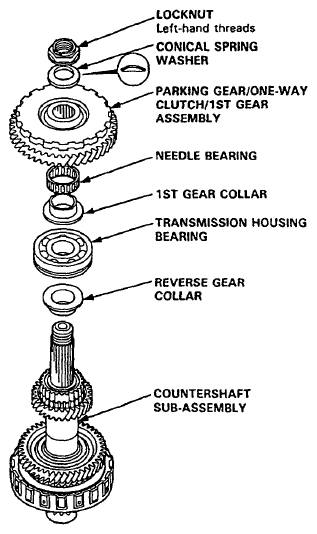

   Fig 2: Identifying Countershaft Sub-Assembly, Locknut And Needle Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Measure the clearance between the 2nd gear and the 28 mm distance collar with a feeler gauge.
   NOTE: Take measurements in at least three places, and use the average as the actual clearance.

   STANDARD: 0.10 - 0.18 mm (0.004 - 0.007 in)

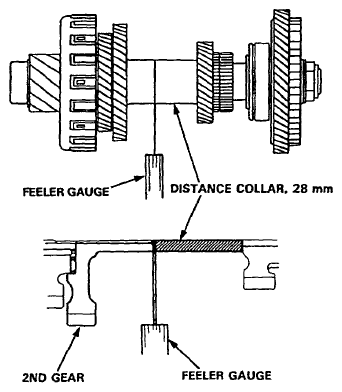

   Fig 3: Measuring Clearance Between 2nd Gear And Collar

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. If the clearance is out of tolerance, remove the 28 mm distance collar and measure the width.
6. Select and install a new distance collar, then recheck.

   DISTANCE COLLAR, 28 mm

   COLLAR SPECIFICATION



   No.	Part Number	Width
   1	90503 - PC9 - 000	39.00 mm (1.535 in)
   2	90504 - PC9 - 000	39.10 mm (1.539 in)
   3	90505 - PC9 - 000	39.20 mm (1.543 in)
   4	90507 - PC9 - 000	39.30 mm (1.547 in)
   5	90508 - PC9 - 000	39.05 mm (1.537 in)
   6	90509 - PC9 - 000	39.15 mm (1.541 in)
   7	90510 - PC9 - 000	39.25 mm (1.545 in)
   8	90511 - PC9 - 000	38.90 mm (1.531 in)
   9	90512 - PC9 - 000	38.95 mm (1.533 in)

7. Recheck the distance collar clearance to make sure it is within tolerance.
