Automatic Transmission: Countershaft: Disassembly/Reassembly

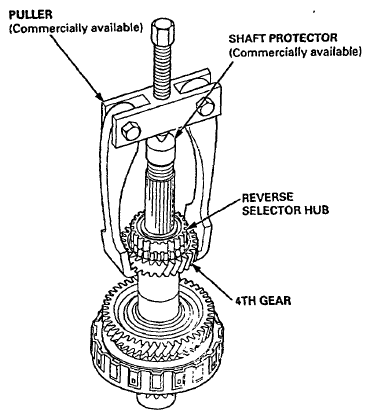

- Remove the reverse selector hub and the 4th gear using a universal two-jaw (or three-jaw) puller as shown.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

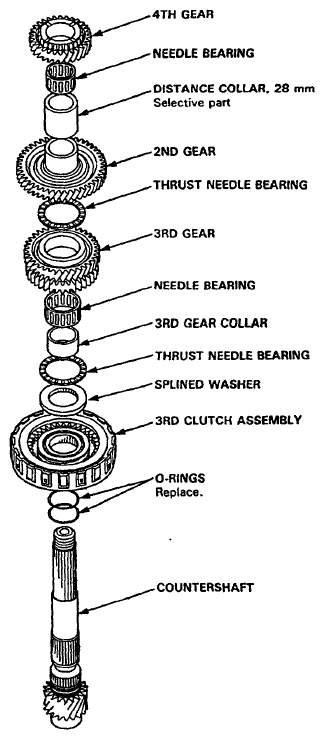

- Assemble the parts on the countershaft as shown below.
NOTE:
- Lubricate all parts with ATF during assembly.
- Before installing the O-rings, wrap the shaft splines with tape to prevent damaging the O-rings.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

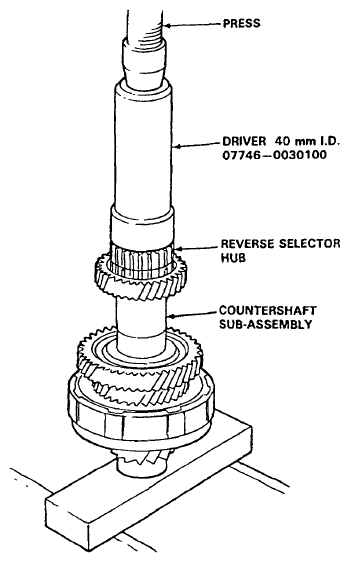

- Install the reverse selector hub on the countershaft sub-assembly, and then press the reverse selector hub using the special tool and a press as shown.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
