Automatic Transmission: Countershaft: Disassembly/Inspection/Reassembly

NOTE:

Lubricate all parts with ATF before reassembly.
Inspect the thrust needle bearings and the needle bearings for galling and rough movement.
Before installing the O-rings, wrap the shaft splines with tape to prevent damaging the O-rings.
Locknut has left-hand threads.
Install the conical spring washer, the one-way clutch, the reverse selector, and the reverse selector hub in the direction shown.

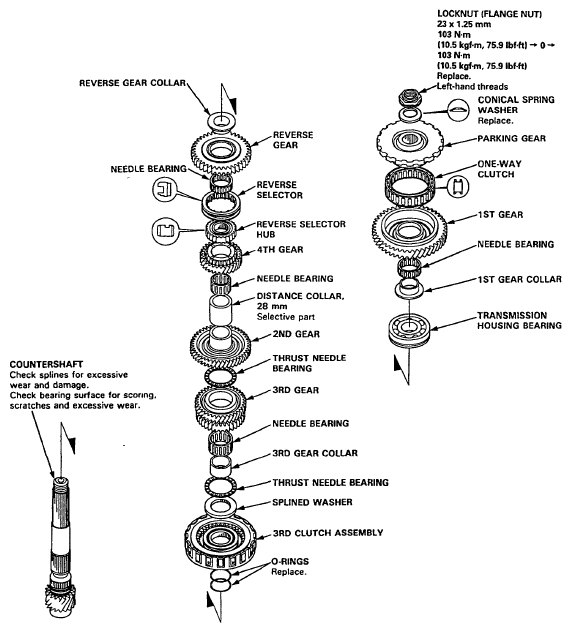

Fig 1: Exploded View Of Countershaft With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
