A/T Gear Position Switch: Replacement

  1. Remove the front console (see CONSOLES AND BEVERAGE HOLDER REMOVAL/INSTALLATION ).
  2. Disconnect the A/T gear position switch connector (14P).

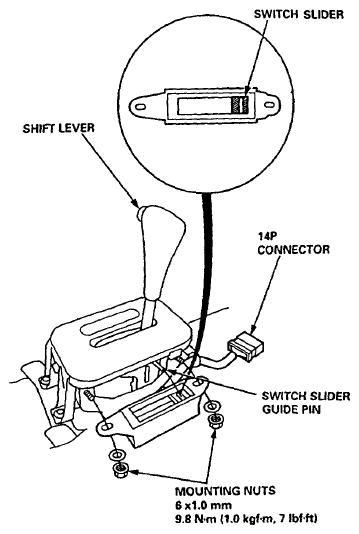

    Fig 1: Identifying A/T Gear Position Switch Connector (14P), Switch Slider And Shift Lever
    G06288261Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the A/T gear position switch from the shift lever mounting bracket.
  4. Position the switch slider of the new A/T gear position switch to [N] position.
  5. Move the shift lever to [N] position, then install the A/T gear position switch while aligning the switch slider with the switch slider guide pin.
  6. Test the A/T gear position switch.
  7. Connect the 14P connector.
