Ignition Timing Inspection and Setting
- Check the idle speed, and adjust it if necessary (see SECTION 11 ).
- Remove the service check connector 2P (BRN and BLK wires) from the connector holder located under the dash on the front passenger side, then connect the SCS service connector (T/N 07PAZ - 0010100) to it.
- Start the engine. Hold the engine at 3,000 rpm with no load (A/T in [N] or [P], M/T in neutral) until the radiator fan comes on, then let it idle.
- Connect the timing light to the No. 1 ignition wire, then point the light toward the pointer on the timing belt cover.
- Check the ignition timing in no load conditions: headlights, blower fan, rear window defogger, and air conditioner are not operating.
Ignition Timing:

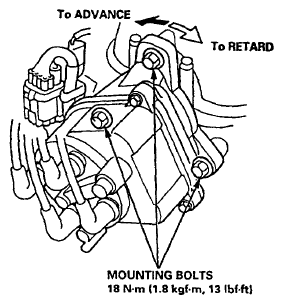

IGNITION TIMING CHARTM/T 12° ± 2° BTDC (RED) during idling in neutral A/T 12° ± 2° BTDC (RED) during idling in or [N] or [P] - Adjust the ignition timing if necessary, as follows. Loosen the distributor mounting bolts, and turn the distributor ignition (DI) housing counterclockwise to advance the timing, or clockwise to retard the timing.
- Tighten the distributor mounting bolts, and recheck the ignition timing.
- Disconnect the SCS service connector from the service check connector.
