Home
>>
Acura
>>
2000
>>
1.6EL XS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Idle Control System
>>
Troubleshooting Flowcharts
>>
Alternator (ALT) FR Signal
>>
1999-2000 Models
1999-2000 Models

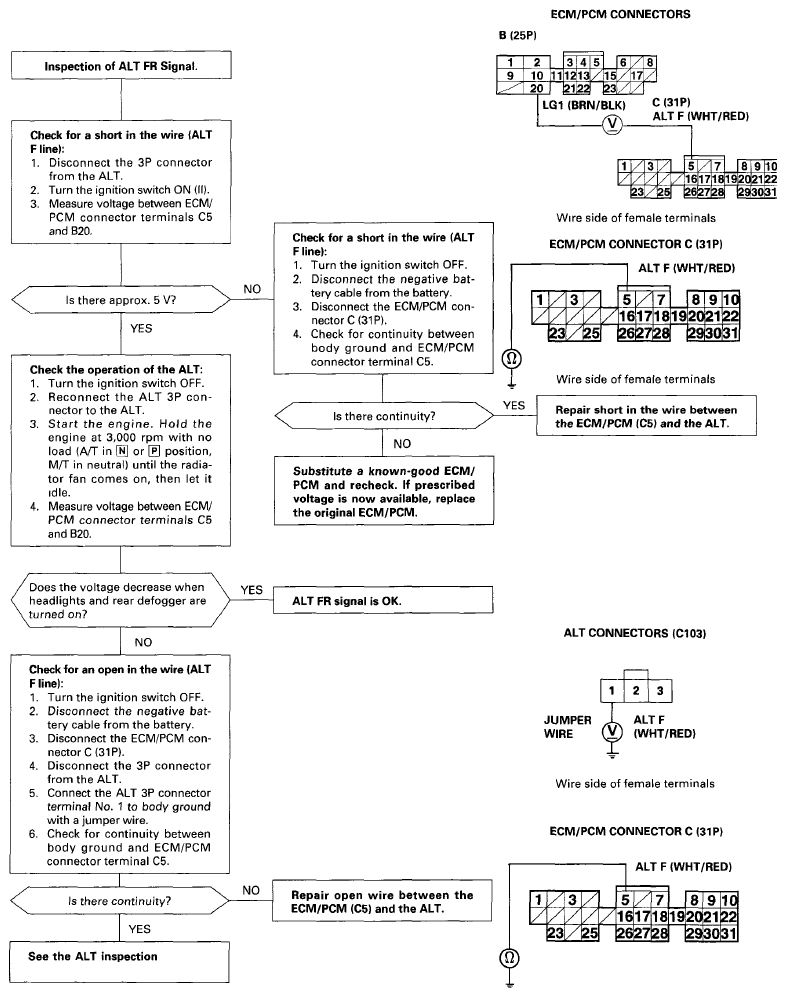

Fig 1: Alternator FR Signal Flowchart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
