Vacuum Connections

Fig 1: Vacuum Connections System Diagram (1 Of 2)
G06289427Courtesy of AMERICAN HONDA MOTOR CO., INC.

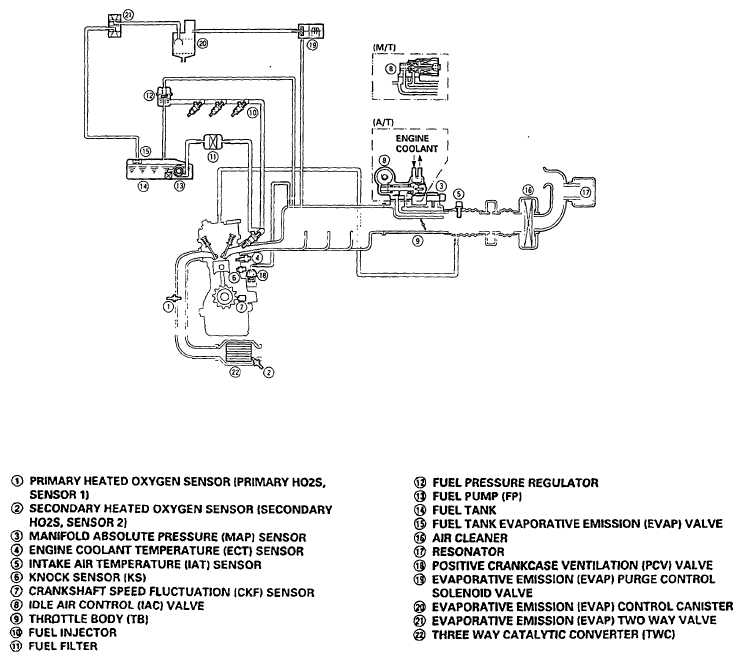

Fig 2: Vacuum Connections System Diagram (2 Of 2)
G06289428Courtesy of AMERICAN HONDA MOTOR CO., INC.
