Oil Pressure: Testing

If the oil pressure warning light stays on with the engine running, check the engine oil level. If the oil level is correct:

1. Connect a tachometer.
2. Remove the engine oil pressure switch, and install an oil pressure gauge.

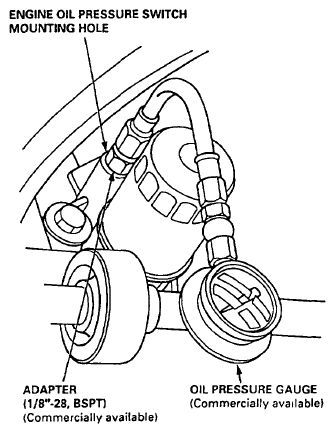

   Fig 1: Identifying Engine Oil Pressure Switch

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Start the engine. Shut it off immediately if the gauge registers no oil pressure. Repair the problem before continuing.
4. Allow the engine to reach operating temperature (fan comes on at least twice). The pressure should be:

   Engine Oil Temperature: 176°F (80°C)

   Engine Oil Pressure:

   At Idle: 70 kPa (0.7 kgf/cm ²  , 10 psi) minimum

   At 3,000 rpm: 340 kPa (3.5 kgf/cm ²  , 50 psi) minimum

   • If oil pressure is NOT within specifications, inspect the oil pump (see REMOVAL/INSPECTION/INSTALLATION  ).
