1997 Model

  1. Check the engine oil level with the engine off and the car parked on level ground.
  2. Make certain that the oil level indicated on the dipstick is between the upper and lower marks.

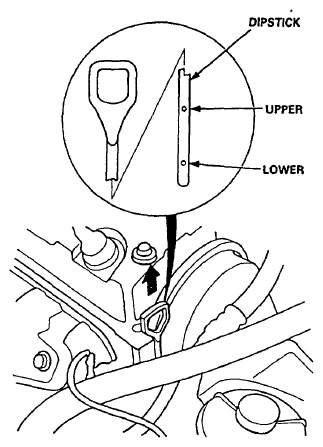

    Fig 1: Identifying Engine Oil Level
    G06289403Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. If the level has dropped close to the lower mark, add oil until it reaches the upper mark.
    CAUTION: Insert the dipstick carefully to avoid bending it.
