1997 Model

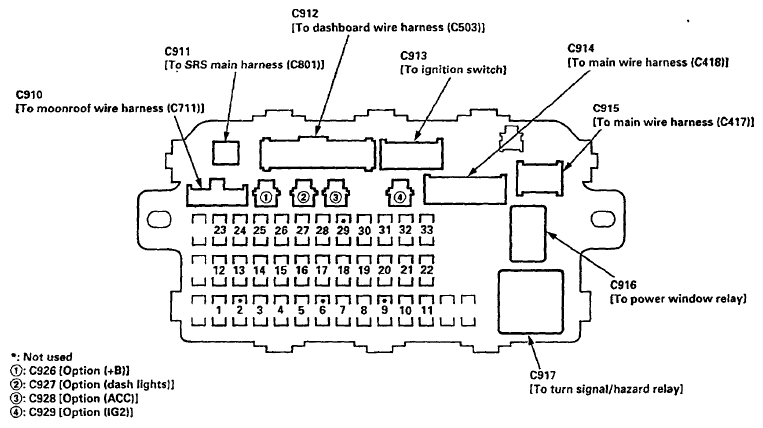

Fig 1: Identifying Under-Dash Fuse/Relay Box
G06290925Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: View from the backside of the under-dash fuse/relay box.

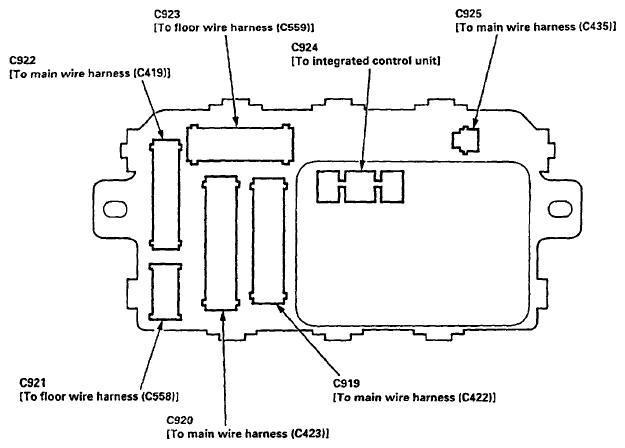

Fig 2: Identifying C923, C924, C925, C921, C920 And C919
G06290926Courtesy of AMERICAN HONDA MOTOR CO., INC.
