Modulator Unit: Removal/Installation: Installation

  1. Install the modulator unit, then connect the brake lines.
  2. Connect the modulator unit 10P and pump motor 2P connectors.
  3. Bleed the brake system, starting with the front wheels.
  4. Start the engine, and check that the ABS indicator light goes off.
  5. Test-drive the vehicle, and check that the ABS indicator light does not come on.

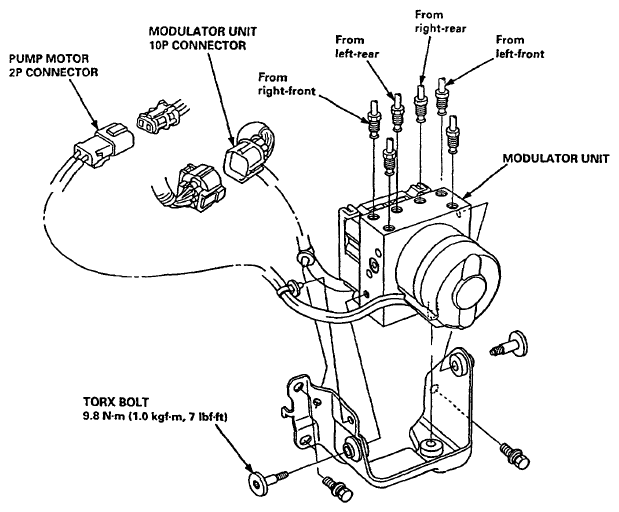

    Fig 1: Identifying Modulator Unit Components
    G06290073Courtesy of AMERICAN HONDA MOTOR CO., INC.
