Passenger's Window Switch Test

  1. Remove the armrest (see DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 5P connector, then remove the mounting screw from the passenger's switch.

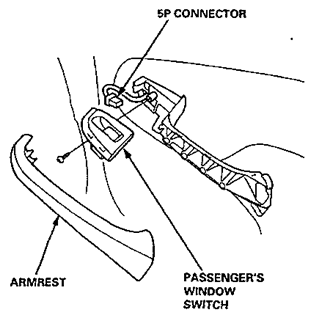

    Fig 1: Identifying Passenger's Window Switch Connector
    G06289742Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Switch side of 5P terminal:

    Fig 2: Identifying 5P Connector Terminal
    G06289743Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the table.
    Fig 3: Continuity Chart
    G06289744Courtesy of AMERICAN HONDA MOTOR CO., INC.
