Exterior/Interior Trim: Emblems: Installation

Apply the emblems where shown.

NOTE:
  • Before applying, clean the body surface with a sponge dampened in alcohol.
  • After cleaning, keep oil, grease and water from getting on the surface.

Attachment Points (Reference):

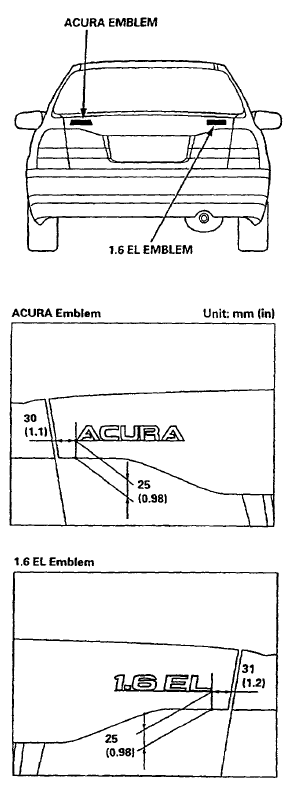

Fig 1: Identifying Emblems Location
G06289531Courtesy of AMERICAN HONDA MOTOR CO., INC.
