Keyless Entry System/Security Alarm System: Description

This system is activated automatically 15 seconds after everything has been closed and locked. The security alarm system indicator light located next to the radio will flash after the doors are properly locked.

If any of the following conditions occur, the horns will sound, the headlights will flash, and the front parking lights and taillights will flash for about two minutes or until the system is disarmed by unlocking either door from the outside with the key or transmitter.

1. Door is opened forcibly.
2. Trunk lid is opened without using the transmitter.
3. Hood is opened.
4. Engine starter circuit and battery circuit are bypassed by breaking the ignition switch.
5. Panic button on the transmitter is pushed.
6. A door is unlocked without using the key or transmitter.

Flowchart of the security alarm system operation:

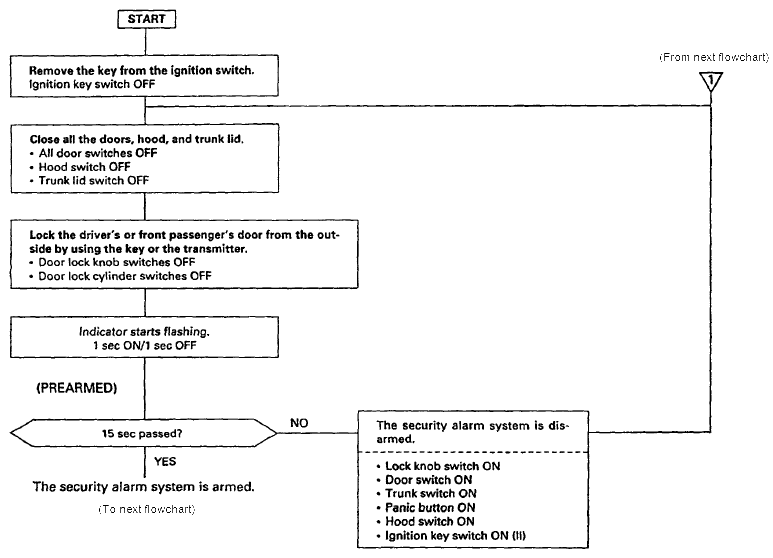

Fig 1: Security Alarm System Flow Chart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

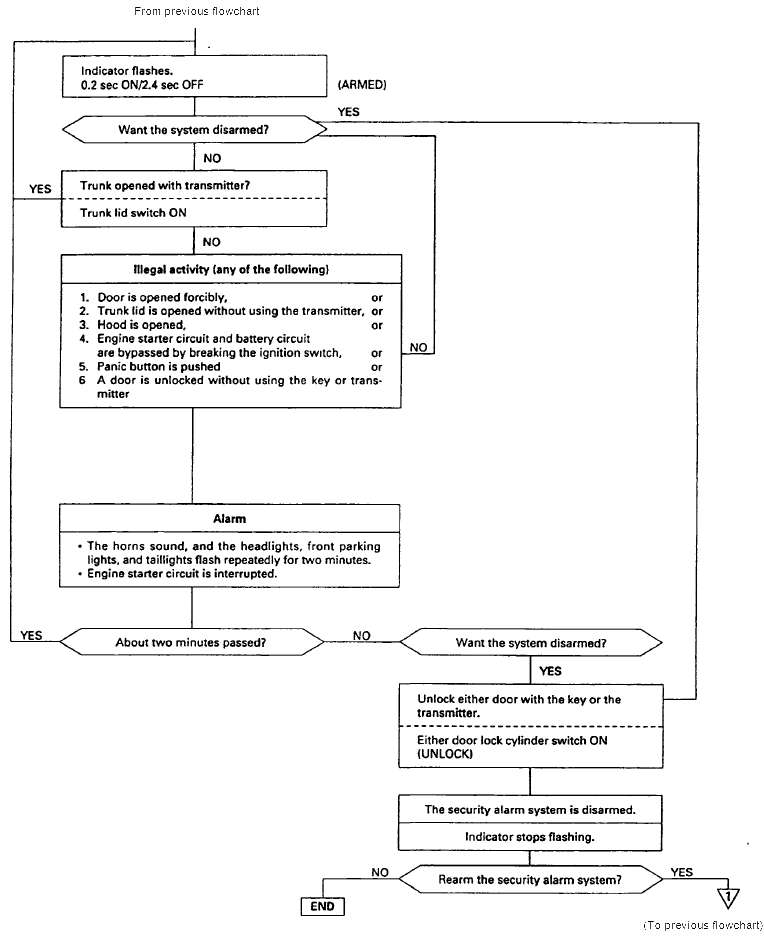

Fig 2: Security Alarm System Flow Chart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
