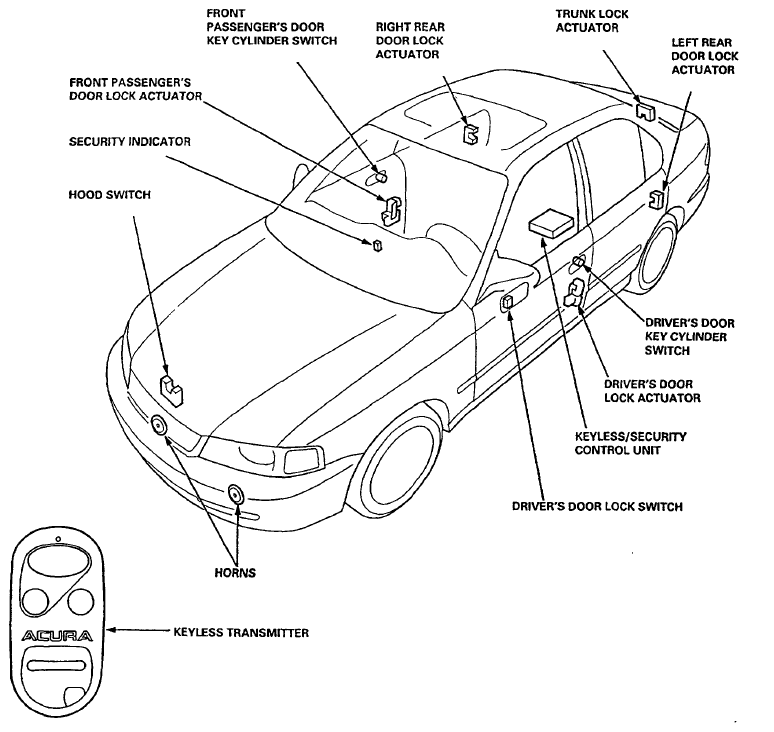

Component Location Index
NOTE:
(Keyless entry system):
- If the doors unlock or lock with the transmitter, but the LED on the transmitter does not come on, the LED is faulty; replace the transmitter.
- When you unlock the doors with the transmitter, the ceiling light (middle position) comes on for 30 seconds.
- The horns sound only the first time you press a transmitter button. (Pressing repeatedly does not activate the horns again).
- If you unlock the doors with the transmitter, but do not open any of the doors within 30 seconds, the doors will automatically relock and the security system will rearm.
- If any door is opened or half-latched when you lock the doors with the transmitter, the horns will chirp three times as a warning.
- The doors will not lock or unlock with the transmitter if the ignition key is inserted in the ignition switch.
- If you press the PANIC button for more than two seconds, the horns sound for about 30 seconds, and the transmitter LED comes on. (The panic mode cannot be activated if the ignition key is in the ignition switch.) The panic mode is cancelled by pressing any of the transmitter buttons.
- After replacing the transmitter battery, press the lock and unlock buttons five or six times to activate the transmitter.
