Input Test

SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS section (24) before performing repairs or service.

  1. Remove the driver's dashboard lower cover and knee bolster (see DASHBOARD COMPONENT REMOVAL/INSTALLATION ).
  2. Disconnect the 10P connector from the integrated control unit.
  3. Remove the integrated control unit from the under-dash fuse/relay box.
  4. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, make the following input tests at the connector and the fuse/relay box socket.
      • If any test indicates a problem, find and correct the cause, then recheck the system.
      • If all the input tests prove OK, the control unit must be faulty; replace it.

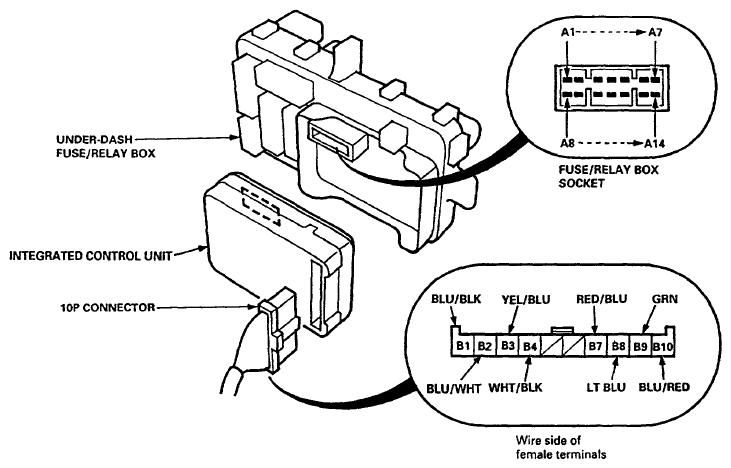

        Fig 1: Identifying Integrated Control Unit 10P Connector
        G06289690Courtesy of AMERICAN HONDA MOTOR CO., INC.

All Systems:

TEST CONDITION CHART

Cavity Wire Test condition Test: Desired result Possible cause if result is not obtained
A14 BLK Under all conditions Check for continuity to ground: There should be continuity.
  • Poor ground (G401, G402)
  • An open in the wire
A9 Fuse/relay box socket Under all conditions Check for voltage to ground: There should be battery voltage.
  • Blown No. 43 (7.5 A) fuse in the under-hood fuse/relay box
  • An open in the wire
A6 Fuse/relay box socket Ignition switch ON (II) Check for voltage to ground: There should be battery voltage.
  • Blown No. 25 (7.5 A) fuse in the under-dash fuse/relay box
  • An open in the wire

Intermittent Wiper System:

TEST CONDITION CHART

Cavity Wire Test condition Test: Desired result Possible cause if result is not obtained
B1 BLU/BLK Ignition switch ON (II), and windshield wiper switch at OFF or INT Check for voltage to ground: There should be battery voltage.
  • Blown No. 26 (20 A) fuse in the under-dash fuse/relay box
  • Faulty windshield wiper switch
  • Faulty windshield wiper motor
  • An open in the wire
B2 BLU/WHT Ignition switch ON (II)
B3 YEL/BLU Ignition switch ON (II), and windshield wiper switch at INT Check for voltage to ground: There should be battery voltage.
  • Blown No. 26 (20 A) fuse in the under-dash fuse/relay box
  • Faulty windshield wiper switch
  • An open in the wire
B4 WHT/BLK Ignition switch ON (II), and windshield washer switch ON Check for voltage to ground: There should be battery voltage.
  • Faulty windshield washer switch
  • An open in the wire
Fig 2: Identifying Integrated Control Unit 10P Connector
G06289691Courtesy of AMERICAN HONDA MOTOR CO., INC.

Key-in/Seat Belt Reminder, Lights-on Reminder System:

TEST CONDITION CHART

Cavity Wire Test condition Test: Desired result Possible cause if result is not obtained
A8 Fuse/relay box socket Combination light switch ON Check for voltage to ground: There should be battery voltage.
  • Blown No. 30 {7.5 A) fuse in the under-dash fuse/relay box
  • Faulty combination light switch
  • An open in the wire
B7 RED/BLU Ignition switch ON (II), and driver's seat belt switch unbuckled Check for voltage to ground: There should be 1 V or less.
  • Poor ground (G552)
  • Faulty seat belt switch
  • An open in the wire
B9 GRN Driver's door open Check for voltage to ground: There should be 1 V or less.
  • Faulty driver's door switch
  • An open in the wire
B10 BLU/RED Ignition key inserted into the ignition key switch Check for voltage to ground: There should be 1 V or less.
  • Poor ground (G401, G402)
  • Faulty ignition key switch
  • An open in the wire

Bulb Check System (Brake System Light):

TEST CONDITION CHART

Cavity Wire Test condition Test: Desired result Possible cause if result is not obtained
A4 Fuse/relay box socket Ignition switch ON (II), brake fluid reservoir full, and parking brake lever down Connect to ground: Brake system light should come on.
  • Blown No. 25 (7.5 A) fuse in the under-dash fuse/relay box
  • Blown brake system light bulb
  • An open in the wire
A13 Fuse/relay box socket Ignition switch at START (III) Check for voltage to ground: There should be battery voltage.
  • Blown No. 31 (7.5 A) fuse in the under-dash fuse/relay box
  • An open in the wire
