1.6EL TS, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
Integrated Control Unit
>>
Circuit Diagram
Circuit Diagram

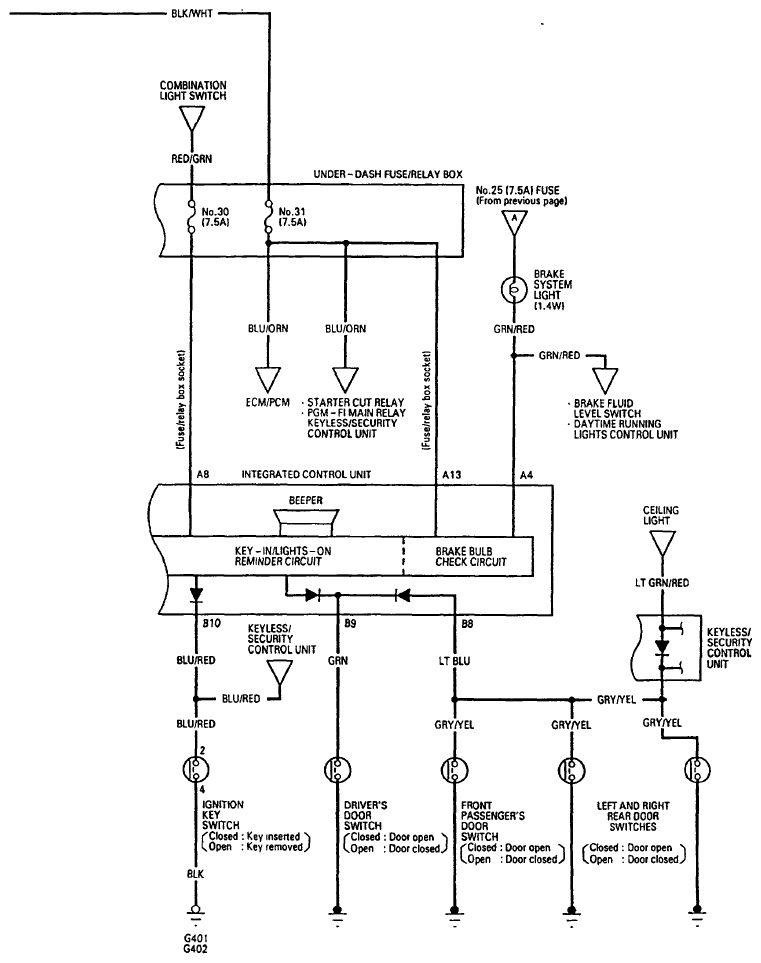

Fig 1: Integrated Control Unit - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

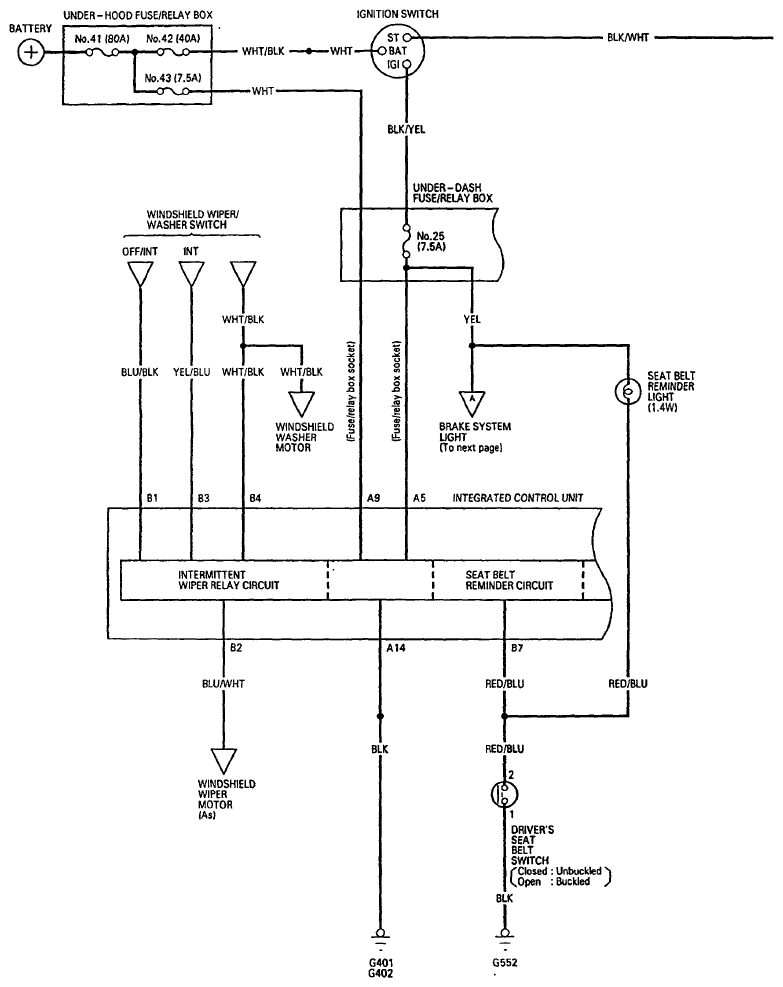

Fig 2: Integrated Control Unit - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
