Final Driven Gear Replacement

  1. Remove the bolts in a crisscross pattern in several steps, then remove the final driven gear from the differential carrier.
    NOTE: The final driven gear bolts have left-hand threads.

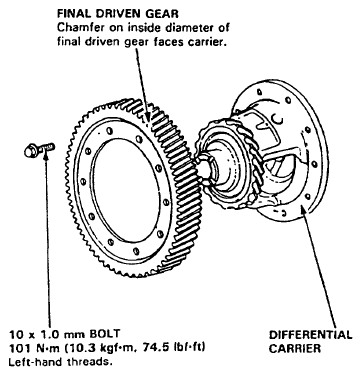

    Fig 1: Final Driven Gear, Differential Carrier And Bolt With Torque Specifications
    G06288138Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the final driven gear by tightening the bolts in a crisscross pattern in several steps.
