Backlash Inspection

Place differential assembly on V-blocks, and install both driveshafts.

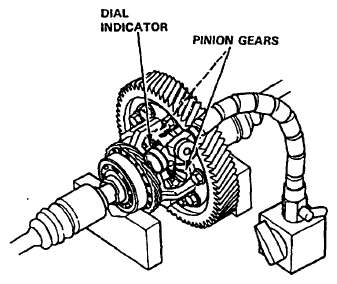

Fig 1: Placing Differential Assembly On V-Blocks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure backlash of both pinion gears.
Standard (New): 0.05 - 0.15 mm (0.002 - 0.006 in)
If the backlash is not within the standard, replace the differential carrier.
