Electrical Connections

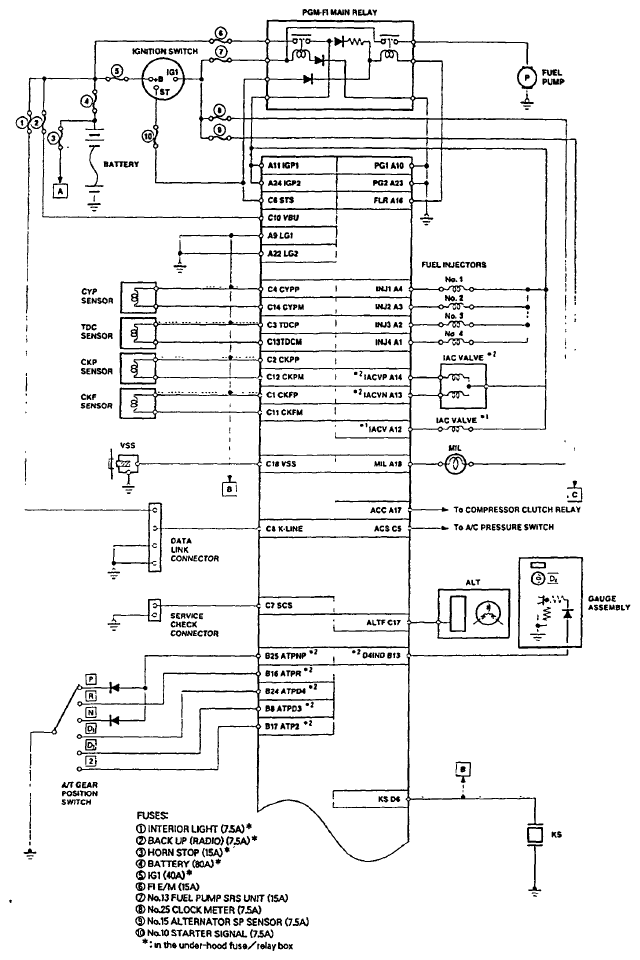

Fig 1: PGM-FI Main Relay Electrical Connections Circuit Diagram (1 Of 9)
G06289429Courtesy of AMERICAN HONDA MOTOR CO., INC.

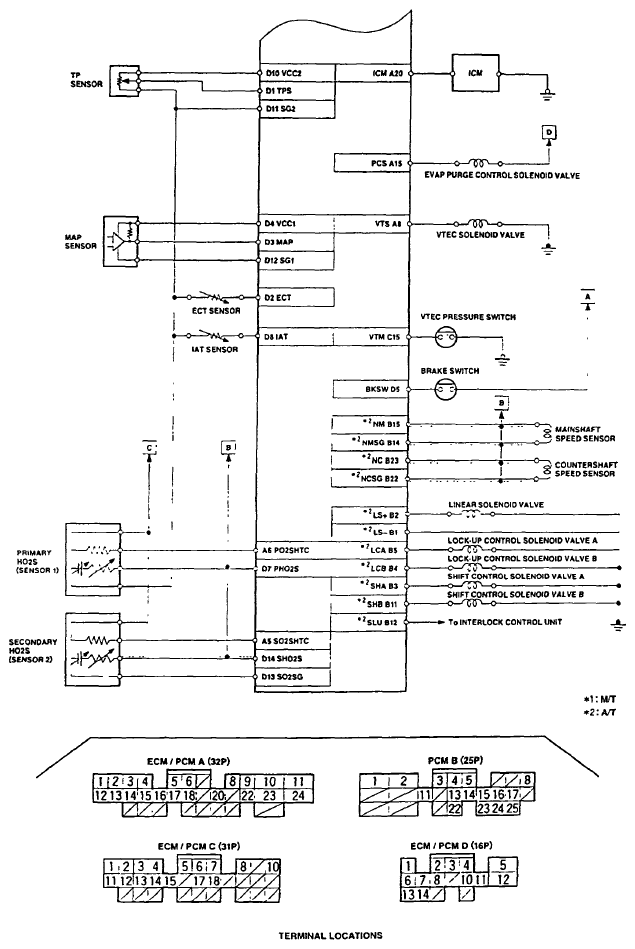

Fig 2: PGM-FI Main Relay Electrical Connections Circuit Diagram (2 Of 9)
G06289430Courtesy of AMERICAN HONDA MOTOR CO., INC.

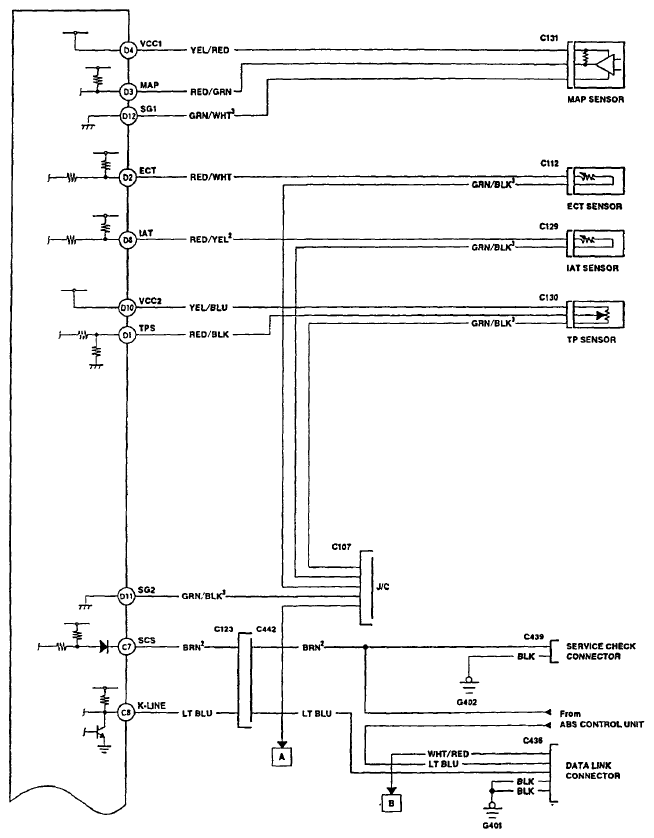

Fig 3: PGM-FI Main Relay Electrical Connections Circuit Diagram (3 Of 9)
G06289431Courtesy of AMERICAN HONDA MOTOR CO., INC.

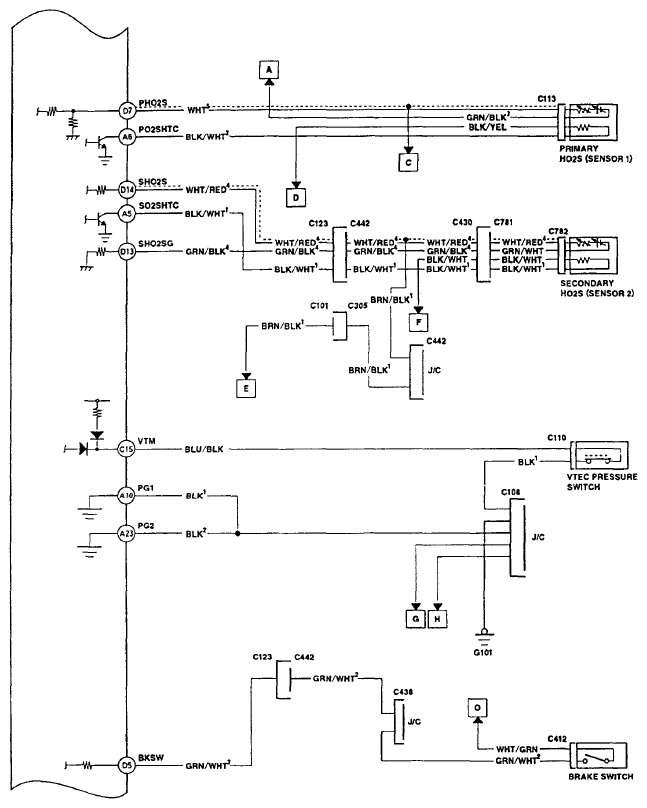

Fig 4: PGM-FI Main Relay Electrical Connections Circuit Diagram (4 Of 9)
G06289432Courtesy of AMERICAN HONDA MOTOR CO., INC.

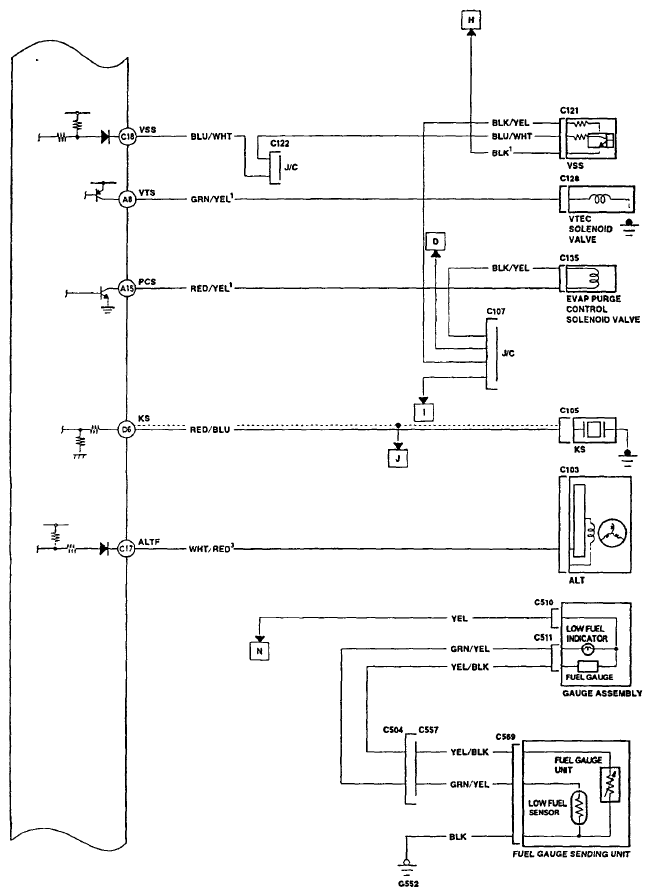

Fig 5: PGM-FI Main Relay Electrical Connections Circuit Diagram (5 Of 9)
G06289433Courtesy of AMERICAN HONDA MOTOR CO., INC.

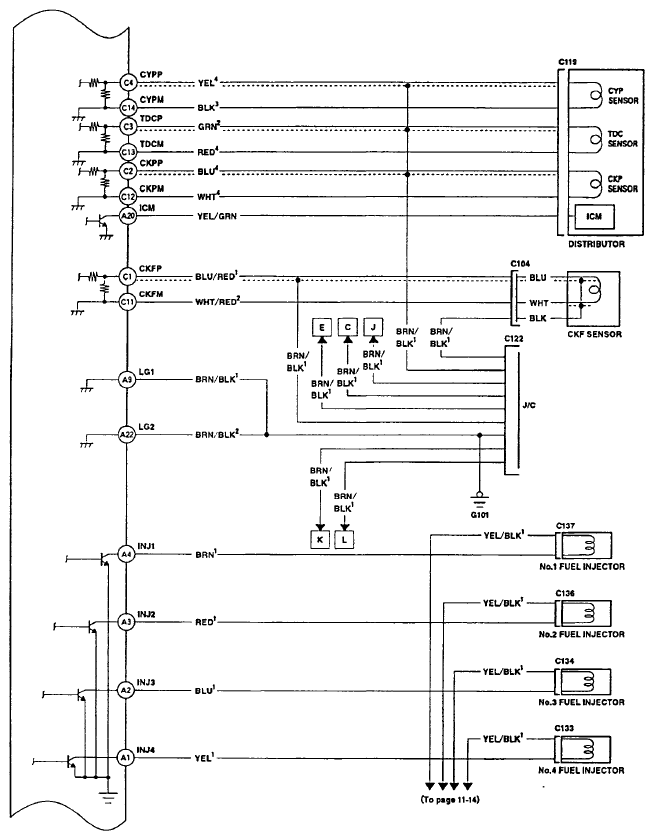

Fig 6: PGM-FI Main Relay Electrical Connections Circuit Diagram (6 Of 9)
G06289434Courtesy of AMERICAN HONDA MOTOR CO., INC.

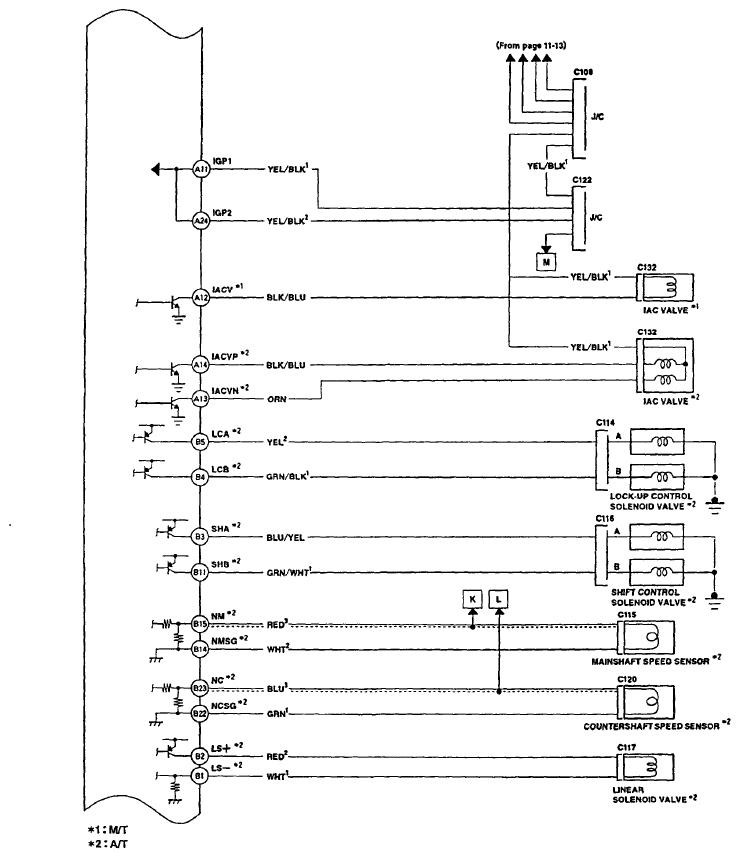

Fig 7: PGM-FI Main Relay Electrical Connections Circuit Diagram (7 Of 9)
G06289435Courtesy of AMERICAN HONDA MOTOR CO., INC.

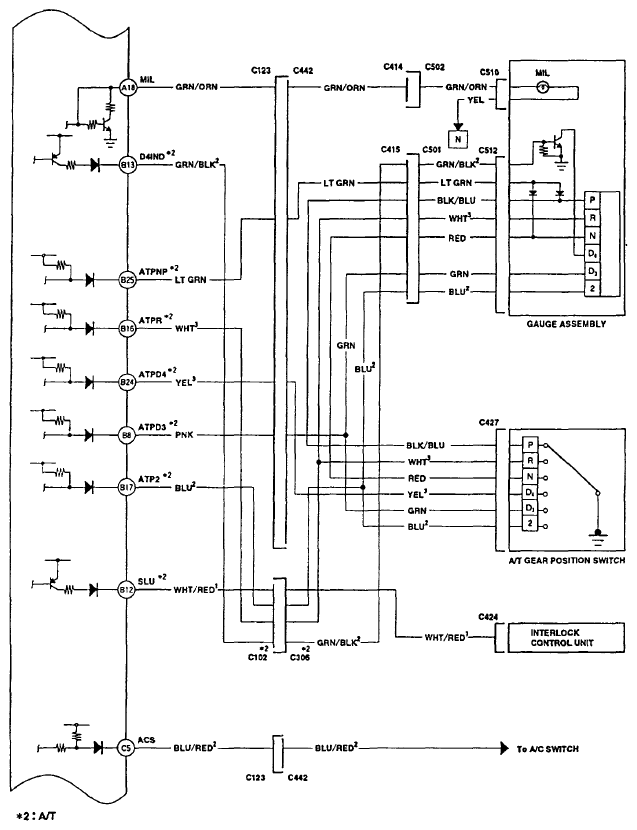

Fig 8: PGM-FI Main Relay Electrical Connections Circuit Diagram (8 Of 9)
G06289436Courtesy of AMERICAN HONDA MOTOR CO., INC.

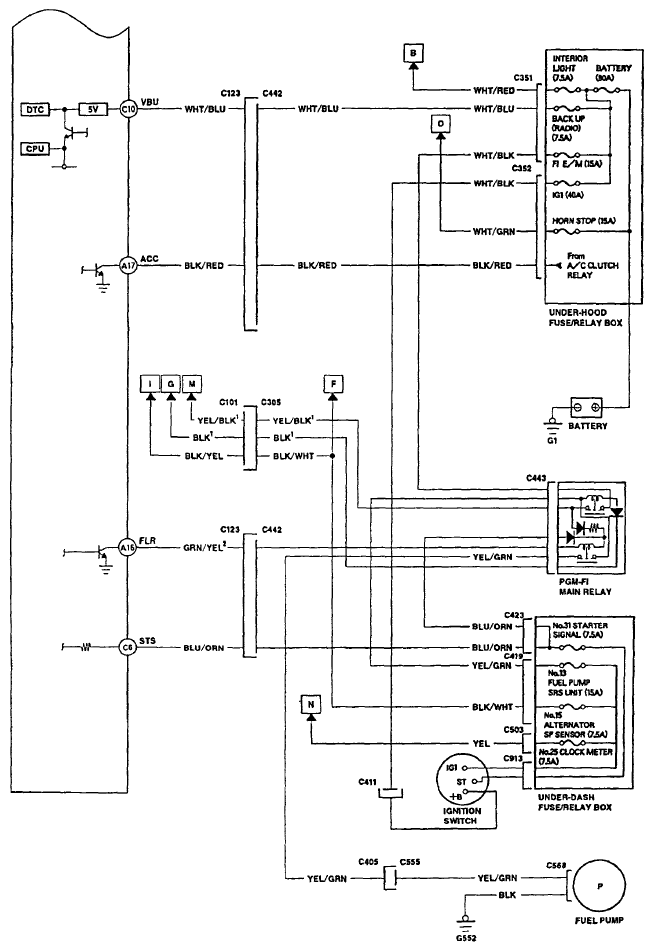

Fig 9: PGM-FI Main Relay Electrical Connections Circuit Diagram (9 Of 9)
G06289437Courtesy of AMERICAN HONDA MOTOR CO., INC.
