Troubleshooting Flowchart

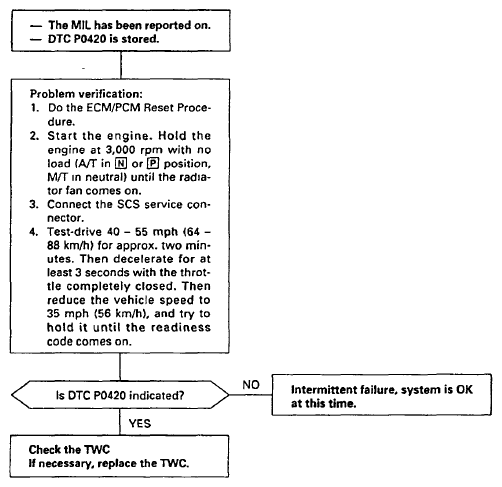

Fig 1: Troubleshooting Flow Chart
G06289485Courtesy of AMERICAN HONDA MOTOR CO., INC.
