ORVR Vent Shut Valve Replacement

  1. Remove the fuel tank (see FUEL TANK ).
  2. Remove the ORVR vent shut valve from the fuel tank.
  3. Install parts in the reverse order of removal.

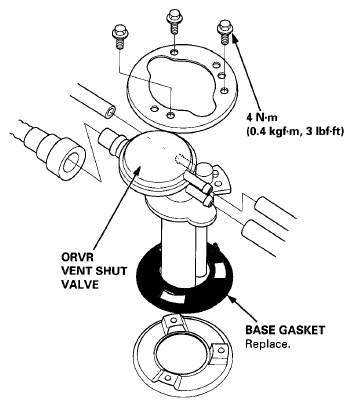

    Fig 1: Locating ORVR Vent Shut Valve
    G06290355Courtesy of AMERICAN HONDA MOTOR CO., INC.
