Throttle Cable: Inspection/Adjustment

  1. Start the engine. Hold the engine at 3,000 rpm with no load (A/T in [N] or [P] position, M/T in neutral) until the radiator fan comes on, then let it idle.
  2. Check that the throttle cable operates smoothly with no binding or sticking. Repair as necessary.
  3. Check cable free play at the throttle linkage. Cable deflection should be 10 - 12 mm (0.39 - 0.47 in.).

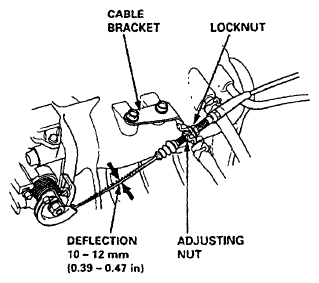

    Fig 1: Identifying Cable Deflection, Cable Bracket, Locknut And Adjusting Nut
    G06289476Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If deflection is not within specs, loosen the locknut, turn the adjusting nut until the deflection is as specified, then retighten the locknut.
  5. With the cable properly adjusted, check the throttle valve to be sure it opens fully when you push the accelerator pedal to the floor. Also check the throttle valve to be sure it returns to the idle position whenever you release the accelerator pedal.
