Throttle Body: Disassembly

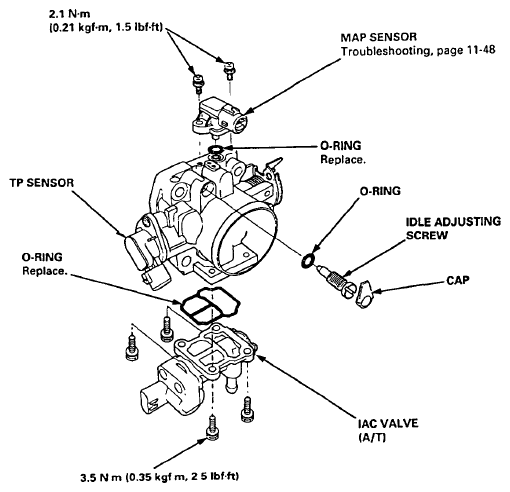

Fig 1: Identifying MAP Sensor, TP Sensor, O-Ring, IAC Valve, Idle Adjusting Screw And Cap

G06289482

Courtesy of AMERICAN HONDA MOTOR CO., INC.
