Fuel Injection Air (FIA) Control System: Description

When the engine running [engine coolant temperature below 149°F (65°C)], the Fuel Injection Air (FIA) Control Valve sends intake air to the fuel injectors.

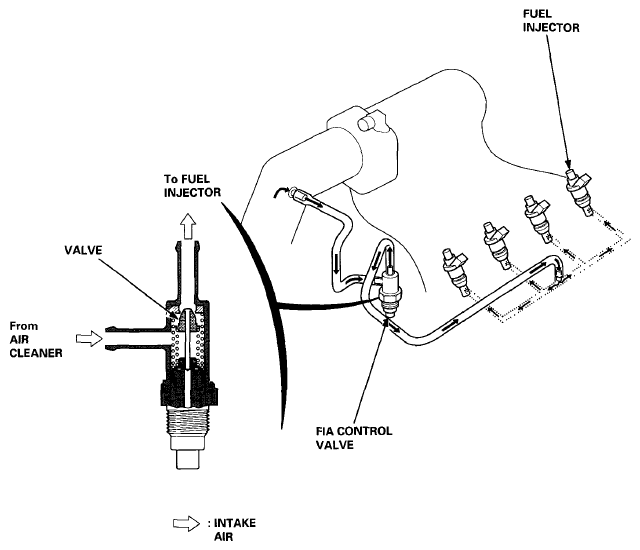

Fig 1: Identifying Fuel Injection Air Control System

Courtesy of AMERICAN HONDA MOTOR CO., INC.
