Charging System Light Test

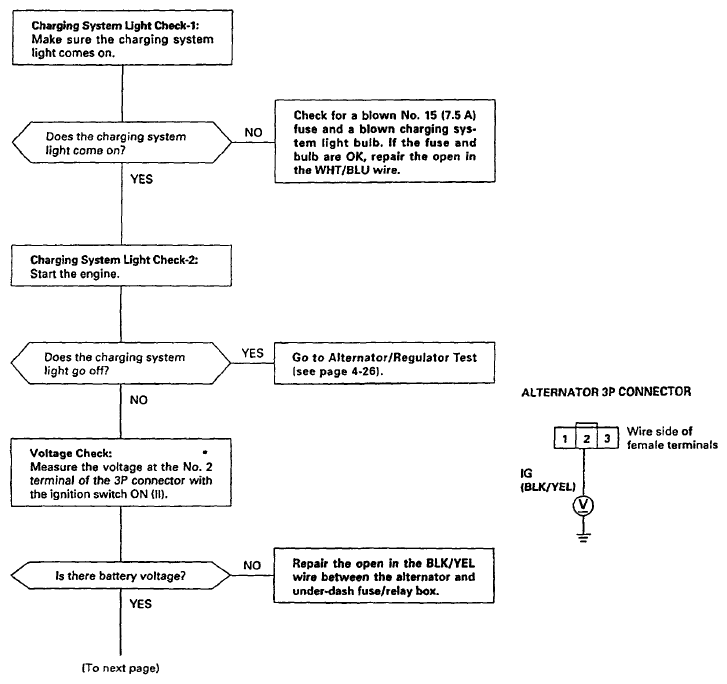

Charging System Light Test
Fig 1: Charging System Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Charging System Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

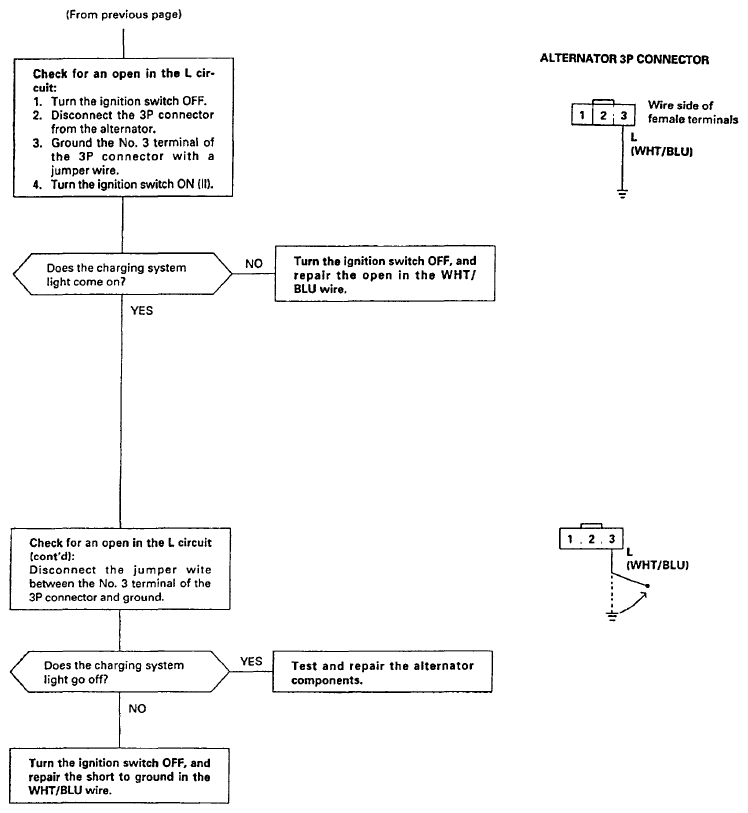

Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
