1998-2000 Model

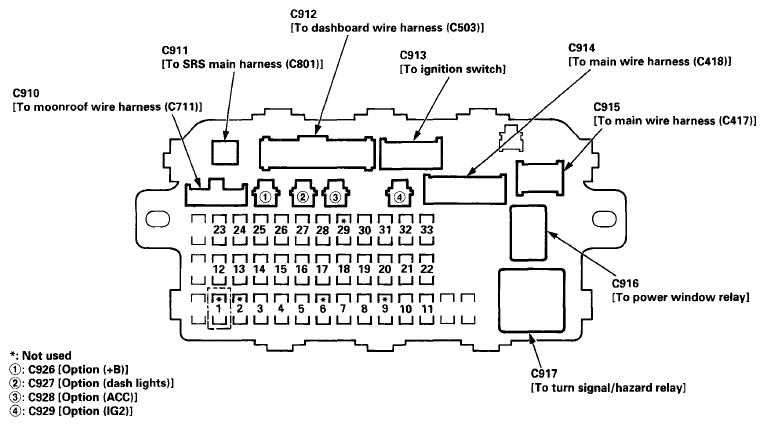

Fig 1: Identifying Under-Dash Fuse/Relay Box

G06287828

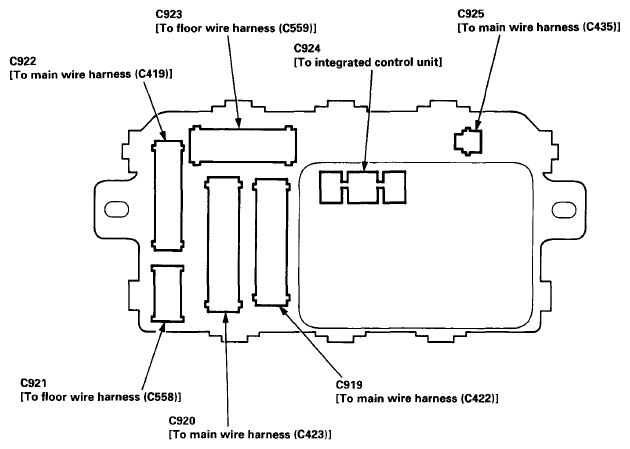

NOTE: View from the backside of the under-dash fuse/relay box.

Fig 2: Identifying Under-Dash Fuse/Relay Box

G06287829
