Home
>>
Acura
>>
2000
>>
1.6EL TS, Automatic
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System (Abs)
>>
Diagnostic Trouble Code (DTC)
>>
Troubleshooting Index
Troubleshooting Index
NOTE:
This operation can also be done with the Honda PGM Tester.

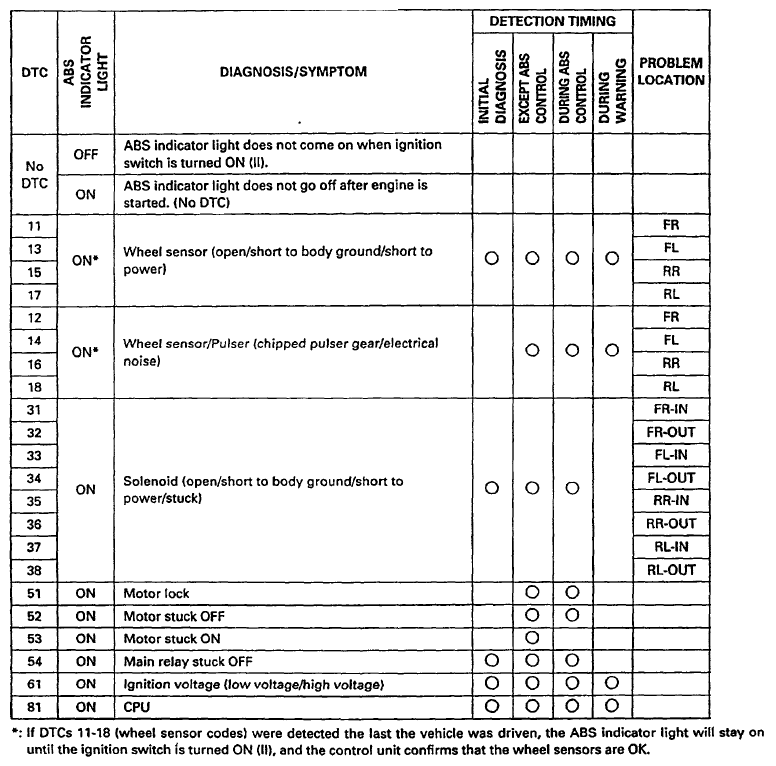

Fig 1: Troubleshooting Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
