Hood Switch Test

  1. Open the hood.
  2. Remove the front grille (see COMPONENT LOCATION INDEX ).
  3. Disconnect the 2P connector from the hood switch.

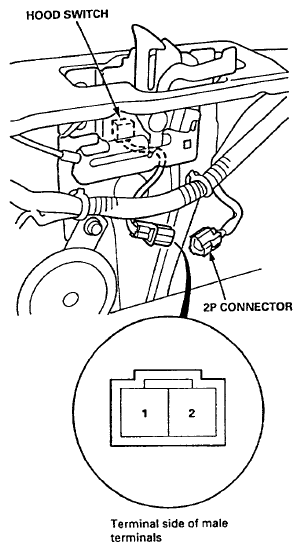

    Fig 1: Identifying Hood Switch 2P Connector
    G06288629Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Check for continuity between the terminals in each switch position according to the table.
    Fig 2: Hood Switch 2P Connector Continuity Chart
    G06288630Courtesy of AMERICAN HONDA MOTOR CO., INC.
