1998-2000 Model

WARNING: This page is about a different car, the 1997 Acura 1.6EL. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When prying with a flat tip screwdriver, wrap it with protective tape to prevent damage.

NOTE: Take care not to scratch the seat covers and body.

Remove the seat track end cover, then remove the bolts.

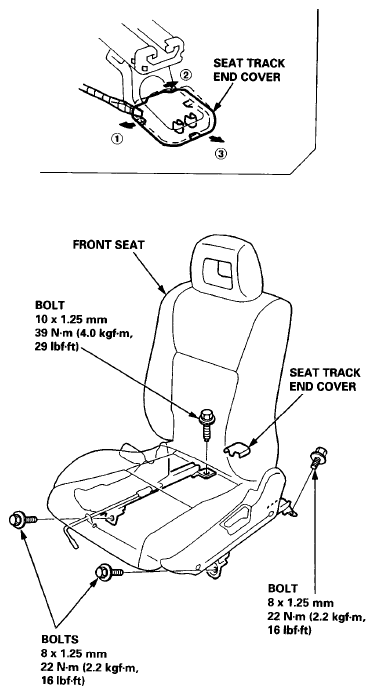

Fig 1: Identifying Seat Track End Cover And Bolts
Lift the front seat, and disconnect the connector, and detach the harness clip.
Without seat heater:

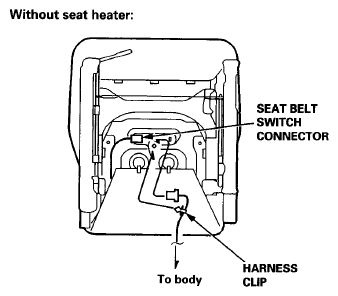

Fig 2: Identifying Front Seat Connector And Harness Clip - Without Seat Heater

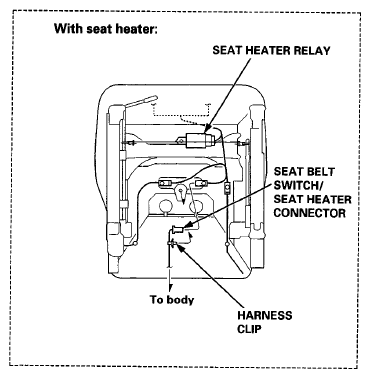

Fig 3: Identifying Front Seat Connector And Harness Clip - With Seat Heater
Remove the headrest.
Carefully remove the front seat through the front door opening.
Installation is the reverse of the removal procedure.
NOTE: Make sure the connector is connected properly.
