Carpet Removal/Installation

WARNING: This page is about a different car, the 1997 Acura 1.6EL. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in the parts areas marked with an asterisk (*). Review the SRS component locations, precautions, and procedures in SRS (SUPPLEMENTAL RESTRAINT SYSTEM) article before performing repairs or service.

Remove:
- Front seat (see FRONT SEAT REMOVAL/INSTALLATION )
- Rear seat cushion (see REAR SEAT REMOVAL/INSTALLATION )
- Kick panel (see INTERIOR TRIM REMOVAL/INSTALLATION )
- Center pillar lower trim panel (see INTERIOR TRIM REMOVAL/INSTALLATION )
- Side trim (see INTERIOR TRIM REMOVAL/INSTALLATION )
- Front and rear consoles
- Beverage holder
Remove the SRS unit covers.
Cut areas (A) and (B) in the carpet, then pull it back as shown.

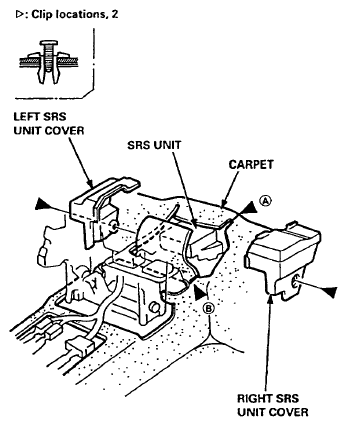

Fig 1: Identifying SRS Unit Covers And Carpet
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the footrest and parking brake lever mounting bolts, and detach the clips, then remove the carpet.

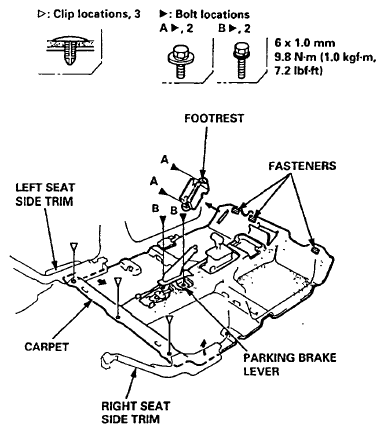

Fig 2: Identifying Footrest, Clips And Parking Brake Lever Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Installation is the reverse of the removal procedure.
NOTE:
- Take care not to damage, wrinkle or twist the carpet.
- Make sure the wire harnesses are routed correctly.
- If necessary, replace any damaged clips.
- Slip the carpet under the seat side trim on each side properly.
- Reattach the cut areas (A) and (B) in the carpet with wire ties.
