Starter Solenoid Test

WARNING: This page is about a different car, the 1997 Acura 1.6EL. However, it is still accessible from the selected car via links, so may be relevant.

Check the hold-in coil for continuity between the S terminal and the armature housing (ground). The coil is OK if there is continuity.

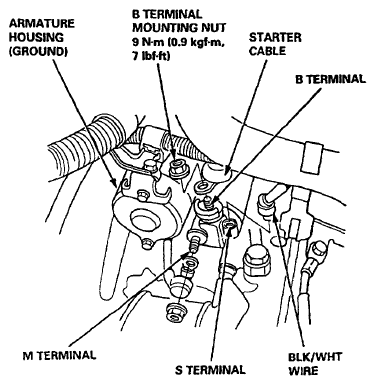

Fig 1: Checking Hold-In Coil For Continuity Between S Terminal And Armature Housing With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the pull-in coil for continuity between the S and M terminals. The coil is OK if there is continuity.
