Overrunning Clutch Inspection

WARNING: This page is about a different car, the 1997 Acura 1.6EL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the overrunning clutch along the shaft. Does it move freely? If not, replace it.
  2. Rotate the overrunning clutch both ways. Does it lock in one direction and rotate smoothly in reverse? If it does not lock in either direction or it locks in both directions, replace it.

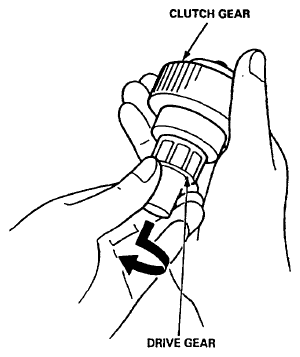

    Fig 1: Inspecting Clutch Gear And Drive Gear
    G06290968Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. If the starter drive gear is worn or damaged, replace the overrunning clutch assembly; the gear is not available separately.
  4. Check the condition of the flywheel or torque converter ring gear if the starter drive gear teeth are damaged.
