System Connectors (Fuel Pump)

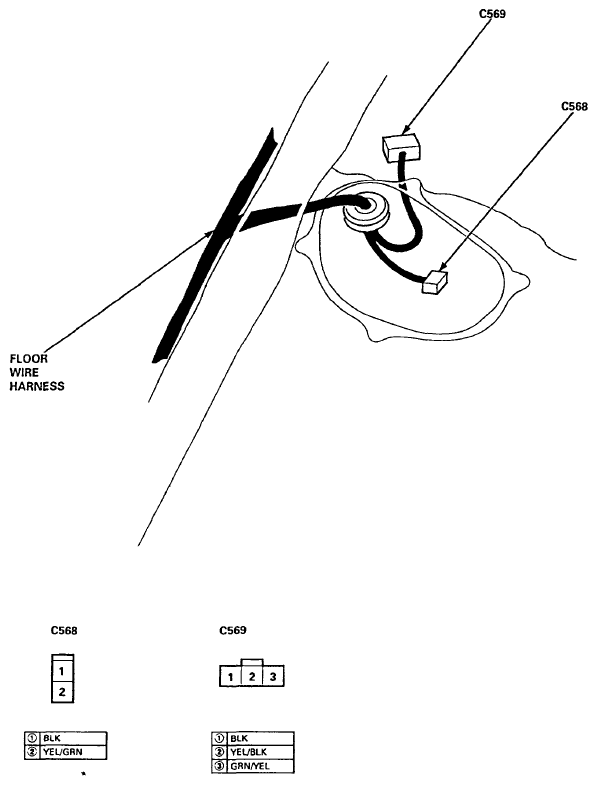

Fig 1: Identifying Floor Wire Harness

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:

Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK¹ and YEL/BLK² are not the same).
◦: Related to Fuel and Emissions System.
- Connector with male terminals (double outline): View from terminal side
- Connector with female terminals (single outline): View from wire side
