1997 Model

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector from the horn.
  3. Remove the horn.

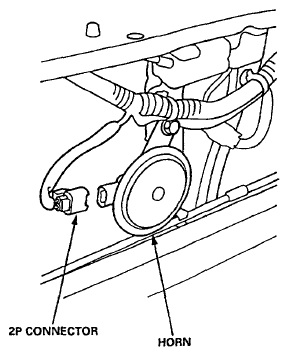

    Fig 1: Identifying Horns 2P Connector
    G06289678
  4. Test the horn by connecting battery power to one terminal and grounding the other. The horn should sound.
    Fig 2: Identifying Horns Connector Terminals
    G06289679
  5. If the horn fails to sound, replace it.
