Home >> Acura >> 2000 >> 1.6EL RS, Standard >> Repair and Diagnosis >> Electrical >> Horns >> Horn System >> Circuit Diagram >> 1997 Model

1997 Model

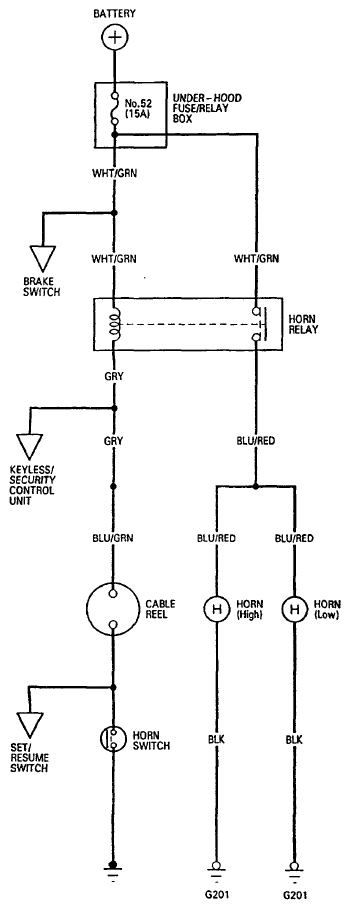

Fig 1: Horns - Circuit Diagram

G06289677
