Shift Control Solenoid Valve A/B Assembly: Replacement

NOTE: Shift control solenoid valves A and B must be removed/replaced as an assembly.
  1. Remove the mounting bolts, the clamp and the shift control solenoid valve A/B assembly. Then, disconnect the connector.

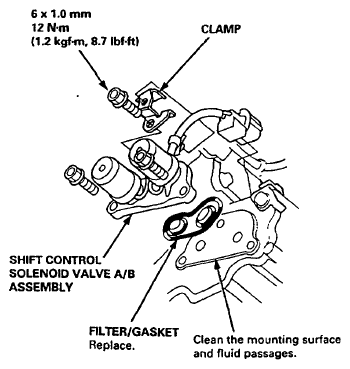

    Fig 1: Cleaning Mounting Surface And Fluid Passages Of Shift Control Solenoid Valve Assembly
    G06288254Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Clean the mounting surface and fluid passages of the shift control solenoid valve assembly, and install a new shift control solenoid valve A/B assembly with a new filter/gasket and the clamp.
  3. Check the connector for rust, dirt or oil, and reconnect it securely.
