System Connectors (Dash and Floor)

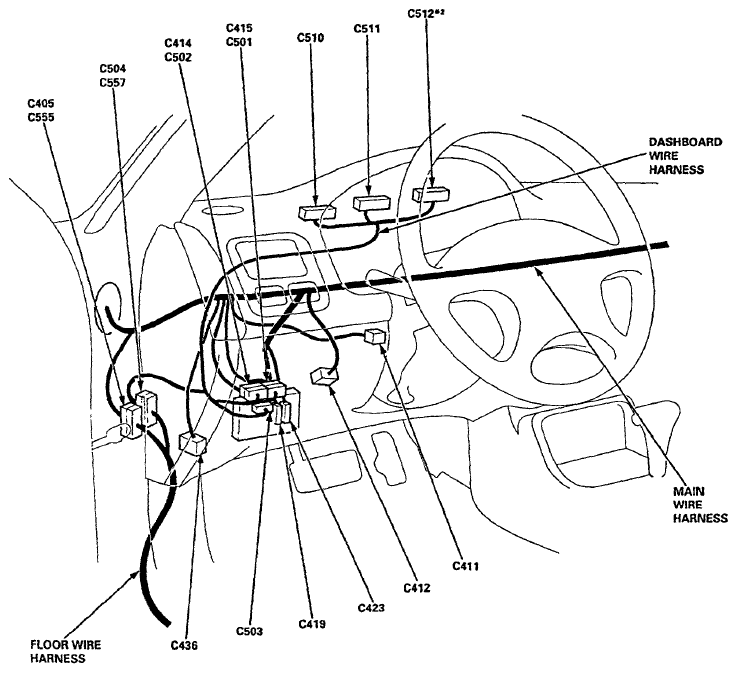

Fig 1: Identifying Main Wire Harness, Floor Wire Harness And Dashboard Wire Harness
G06289443Courtesy of AMERICAN HONDA MOTOR CO., INC.

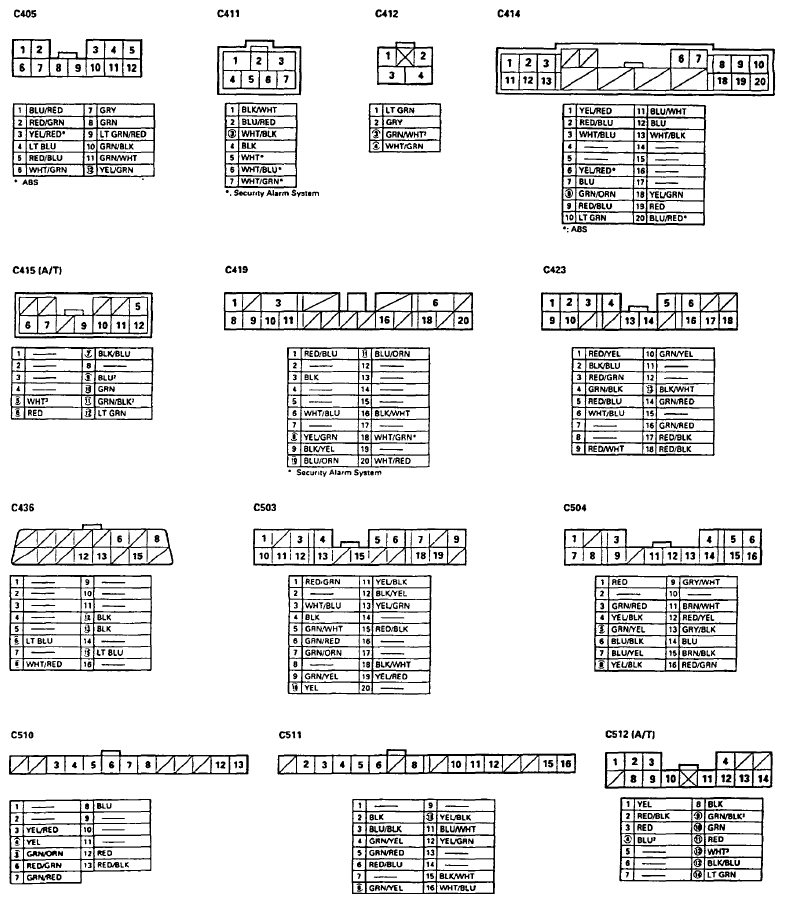

Fig 2: Connectors System Chart (Dash And Floor)
G06289444Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE:
  • Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1 and YEL/BLK2 are not the same).

    ◦: Related to Fuel and Emissions System.

    • Connector with male terminals (double outline): View from terminal side
    • Connector with female terminals (single outline): View from wire side

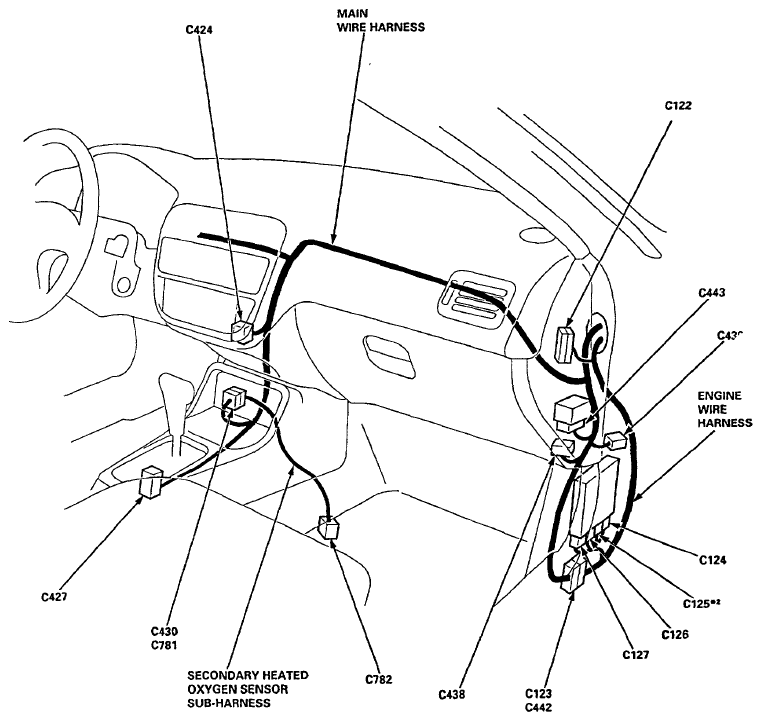

Fig 3: Identifying Secondary Heated Oxygen Sensor Sub-Harness And Engine Wire Harness Location
G06289445Courtesy of AMERICAN HONDA MOTOR CO., INC.

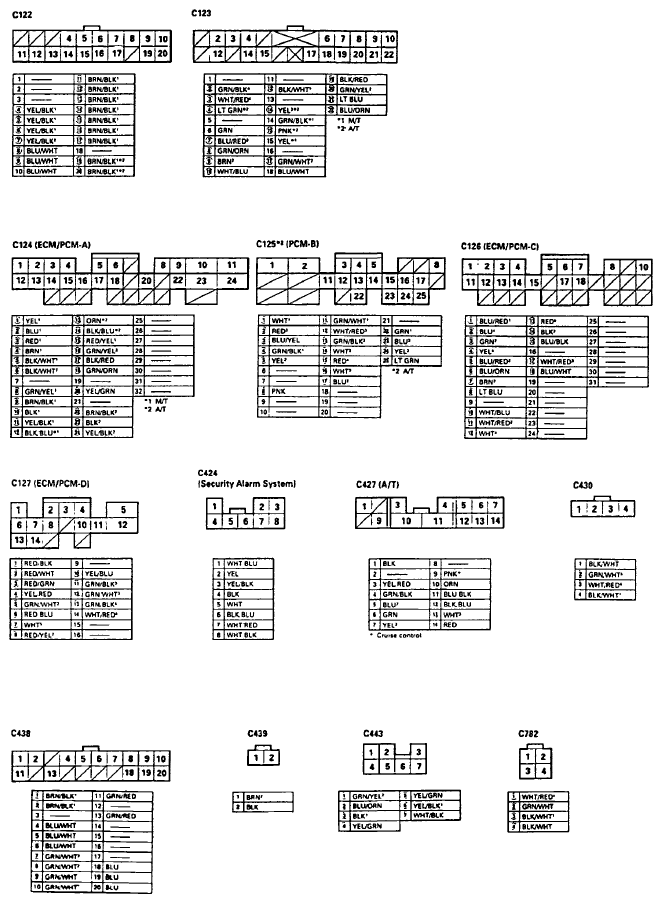

Fig 4: Connectors System Chart (Dash And Floor)
G06289446Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE:
  • Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1 and YEL/BLK2 are not the same).

    ◦: Related to Fuel and Emissions System.

    • Connector with male terminals (double outline): View from terminal side
    • Connector with female terminals (single outline): View from wire side
