Throttle Cable: Installation

Open the throttle valve fully, then install the throttle cable in the throttle linkage, and install the cable housing in the cable bracket.

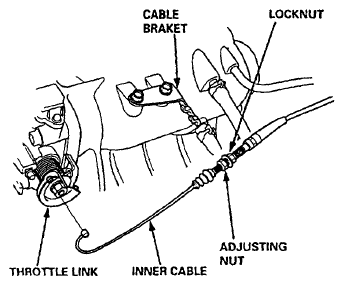

Fig 1: Identifying Cable Bracket, Locknut, Adjusting Nut, Throttle Link And Inner Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Start the engine. Hold the engine at 3,000 rpm with no load (A/T in [N] or [P] position, M/T in neutral) until the radiator fan comes on, then let it idle.
Hold the cable sheath, removing all slack from the cable.
Set the locknut on the cable bracket. Adjust the adjusting nut so that its free play is 0 mm.
Remove the cable sheath from the throttle bracket, reset the adjusting nut and tighten the locknut.

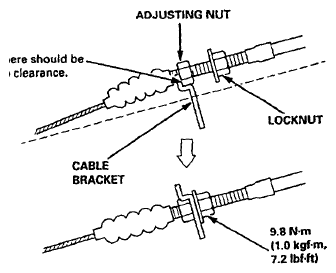

Fig 2: Setting Locknut On Cable Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
