Connecting Rod Code Location

Numbers have been stamped on the side of each connecting rod as a code for the size of the big end. Use them, and the letters stamped on the crankshaft (codes for rod journal size), to choose the correct bearings.

Fig 1: Identifying Connecting Rod Code Location
G06289358Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connecting Rod Journal Code Locations (Letters)

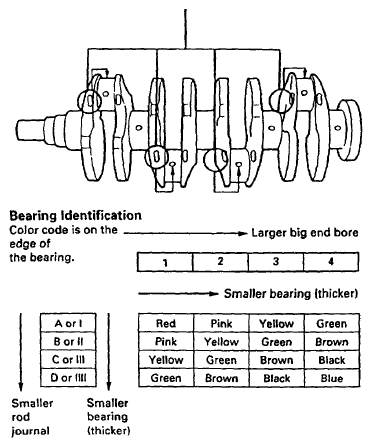

Fig 2: Identifying Connecting Rod Journal Code Locations
G06289359Courtesy of AMERICAN HONDA MOTOR CO., INC.
