Power Mirror Removal/Installation

NOTE: Take care not to scratch the mirror, mirror base cover panel and the door.

Lower the door glass.
Carefully pry out the mirror mount cover panel by hand.

Fig 1: Prying Out Mirror Mount Cover Panel By Hand
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the mirror connector. While holding the mirror, remove the screw and remove the mirror.

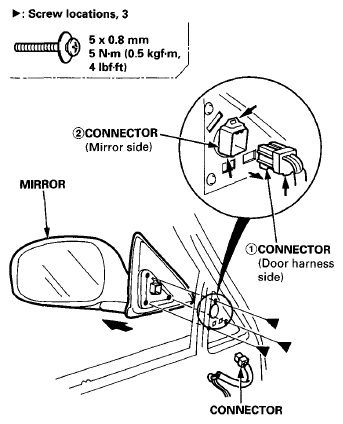

Fig 2: Identifying Mirror Connector, Screw And Mirror
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Installation is the reverse of the removal procedure.
NOTE: Make sure the connector is connected properly.
