Component Disassembly & Reassembly: MAINSHAFT: Disassembly

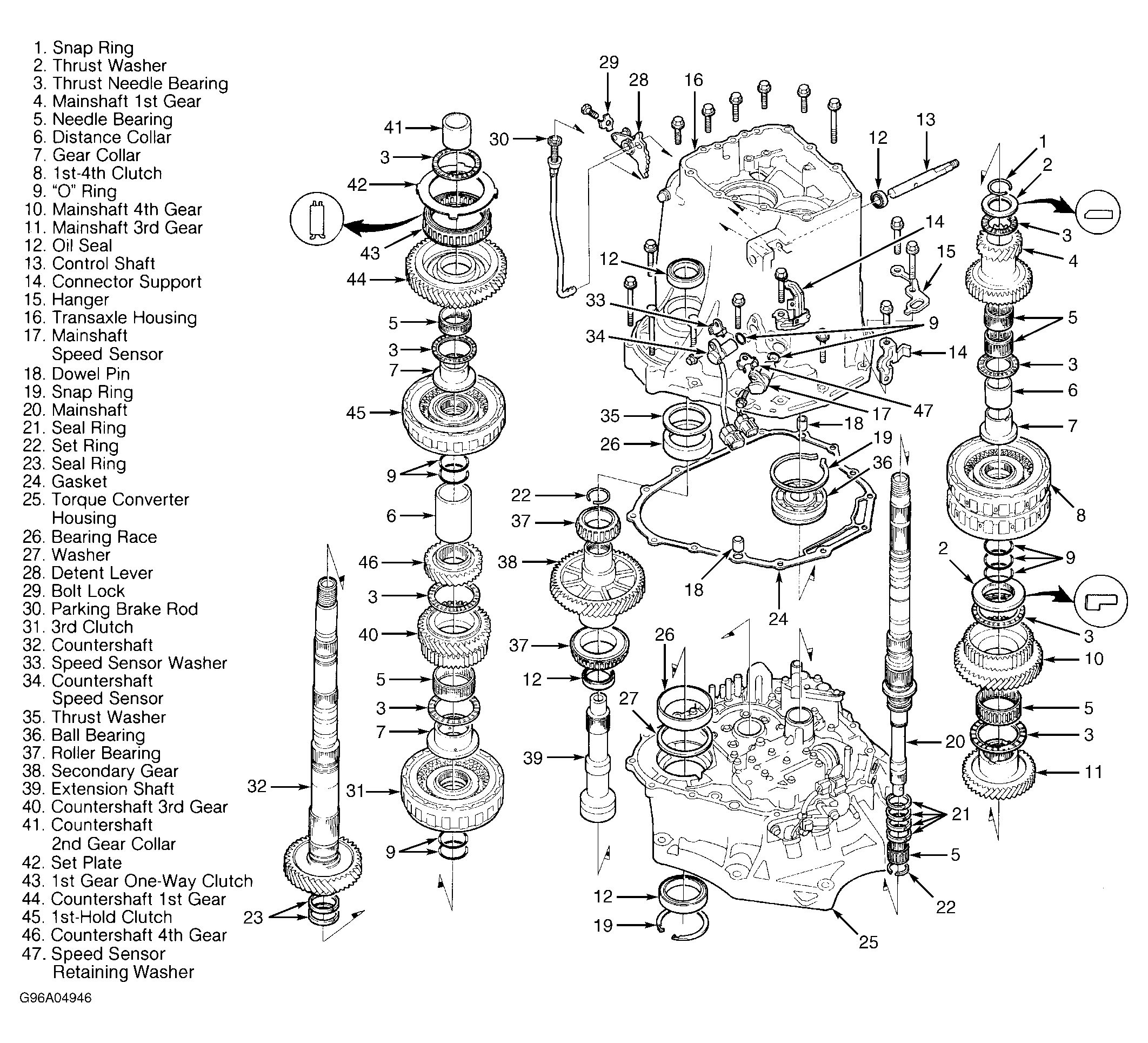

  1. Remove snap ring, thrust washer, thrust needle bearing and mainshaft 1st gear from mainshaft. See Figure.
  2. Remove needle bearing, thrust needle bearing, distance collar, gear collar and 1st-4th clutch from mainshaft. Place mainshaft in press with threaded end (lock nut) end facing upward and support using Adapter (07MAD-PR90100). See Figure.
  3. Press mainshaft from mainshaft 3rd gear, mainshaft 4th gear and thrust washer. Remove thrust needle bearings and needle bearing from mainshaft 3rd and 4th gears.
